toner

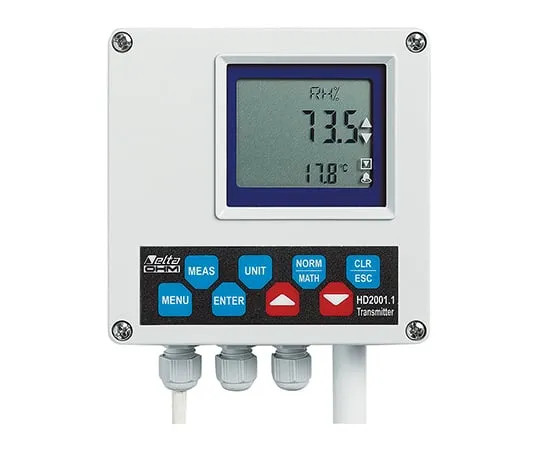

3-8313-03 Environmental Indicator HD2001.1TV1
model:
3-8313-03
category:
toner
Product Description
Product Model: 3-8313-03 Features All models have seria […]
Contact Us
Product Details
Product Model: 3-8313-03
Features
- All models have serial output.
- Analog output is available.
Spec
- Size (mm): 120 x 122 x 56
- Weight (g): about 700
- Sensor: Temperature/NTC 10 kΩ, Humidity/Electrostatic capacity type, Wind speed/Heat wire type
- Measurement range: Temperature/20 to + 80 ℃ , Humidity/0 to 100 %RH , Pressure/600 to 1100 hPa , Wind speed/0 to 5 m/s
- Accuracy: Temperature/±0.3 ℃ (0 to 70 ℃), Humidity/±1.5 %RH (15 to 35 ℃, 0 to 90 %RH time), ±2.0 %RH (15 to: 35 ℃/90 to: 100 %RH time), ±1.5 + 1.5 %RH (Temperature range: 15 to 35 ℃), Pressure/±0.5 hPa (At 25 ℃), Wind speed/±0.15 m/s (At 25 ℃)
- Power supply : AC100V ±10% 50/60Hz
- Waterproof dust-proof: IP67 (excluding probes)
- Environmental indicator: ○
- Temperature and humidity: ○
- Pressure: ○
- Wind Speed: -
- Serial output: ○
- Analog output: ○
