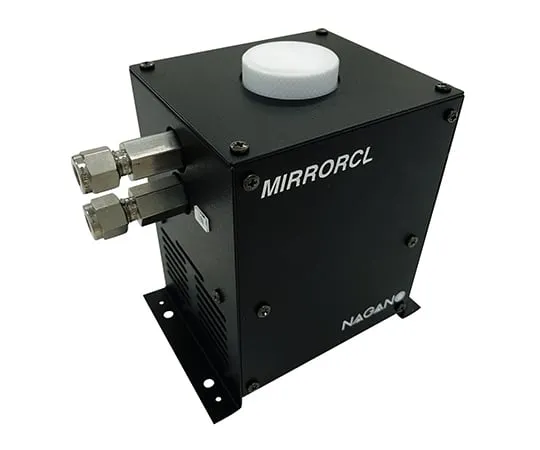

3-7612-01 Miller Cooling Dew Point Meter (Sensor + Amplifier) MIRRORCL-S
Product Description
Product Model: 3-7612-01Product Brand: Nagano Electric […]
Contact Us
Product Details
Product Model: 3-7612-01
Product Brand: Nagano Electric
Features
- With analog/digital output, alarm function, and output hold function.
- Suitable for managing the dew point of heat treatment furnace gas, checking the performance of dehumidifiers, and measuring the dew point in dry rooms.
Spec
- Amplifier specifications
- *Scale: 40 to 60 ℃
- *Resolution: 0.1 ℃
- *Operating temperature: 0 to 40 ℃
- *Output: Analog/4 to 20 mA, 0 to 100 mV, Digital/RS 232
- *Output hold: Output hold during light quantity correction
- *Alarm: 1 point variable upper alarm non-voltage contact
- *Size: approx. 260 x 230 x 99mm
- *Power supply : AC 85 to 264 V 50/60Hz
- *Weight: about 2kg
- sensor specification
- *Measurement range: 35 to 20 ℃ (Around 20 ℃)
- *Accuracy: ±0.5 ℃
- *Maximum operating temperature: 60 ℃
- *Peltier: Motoko 3 stages
- *flow rate : 0.1 to : 1 L/min
- *pressure of ***: Opening to the atmosphere
- *Size: approx. 131 x 103 x 145mm
- *Weight: about 1.6kg
- *Cable: 2m
