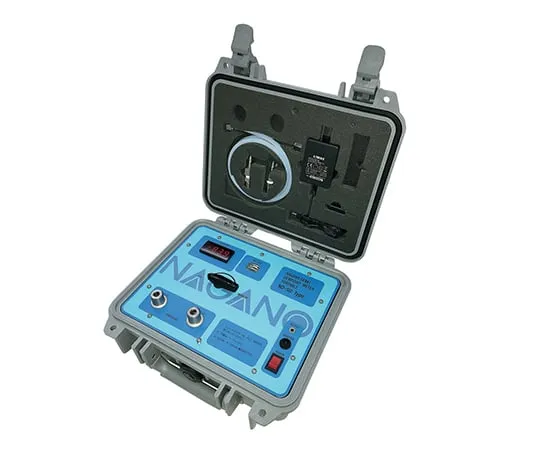

3-7611-01 Portable Dew Point Meter Standard Type ND-SD
Product Description
Product Model: 3-7611-01Product Brand: Nagano Electric […]
Contact Us
Product Details
Product Model: 3-7611-01
Product Brand: Nagano Electric
Features
- Since it is equipped with a small dry chamber, low dew point measurement time can be shortened.
- Since the IN/OUT gas port is a one-touch connector, it is easy to detach.
Spec
- Measurement principle: Electrostatic capacity method
- Measurement range: 100 to 20 ℃
- Accuracy: ±2 ℃ (-80 to 10 ℃)
- Working flow rate: 3 to 10 L/min
- Output: 4 to 20 mA Current output
- Working pressure: Opening to the atmosphere
- Size: approx. 270 x 250 x 125mm
- Power supply : Internal battery or AC100 to 240 V 50/60Hz
- Weight: about 3kg
- *In addition to air specification, there are N2, H2, SF6, etc. Please contact us.
