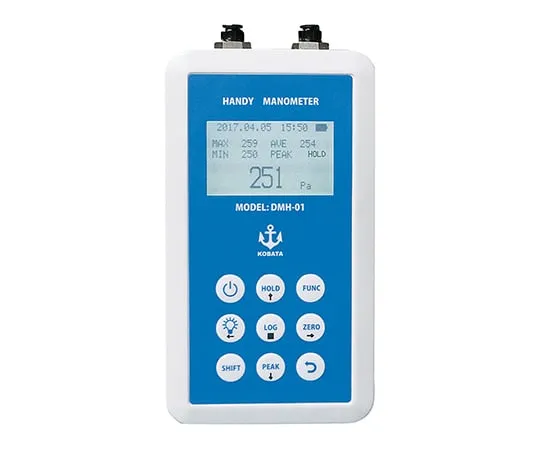

3-7591-01 Handy Digital Manometer ±4kPa DMH-01-4kP
Product Description
Product Model: 3-7591-01Product Brand: KOBATA GAUGE MFG […]
Contact Us
Product Details
Product Model: 3-7591-01
Product Brand: KOBATA GAUGE MFG
Features
- The sampling interval can be set in 12 steps from 10 ms to 60sec.
- When connected to a PC, measurement and measurement data can be stored while monitoring pressure changes on the screen.
- The measurement data is saved in a csv format file, so it can be analyzed by spreadsheets, etc.
Spec
- Model number: DMH-01 -4 kP
- Measurement range (Pa): 0 -. + -. 4000
- Resolution: 1 Pa
- Measurement pressure: differential pressure
- Material : Main unit/Flame-retardant ABS Plastic
- Accuracy: ±0.5% F.S.
- Sampling interval : 12 levels (10mS, 20mS, 50mS, 100mS, 200mS, 500mS, 1 sec, 2 sec, 5 sec, 10 sec, 30 sec, 60 sec)
- Measuring media: Non-corrosive gases such as nitrogen and oxygen
- Internal memory: 16 MB (Approximately 3310000 pieces of pressure data can be stored.)
- Size: Body/76 x 135 x 35mm (excluding projections)
- Pressure connection port: one-touch hose joint (Tube outer diameter φ4 mm) * Can be changed to luer fitting
- Power supply : AA size battery x 2 pieces (test attachment)
- Weight : 212 g (excluding battery)
- Accessories: Silicon cover, dedicated hose (2m), USB cable for PC connection, dedicated software (CD-ROM)
