Spec

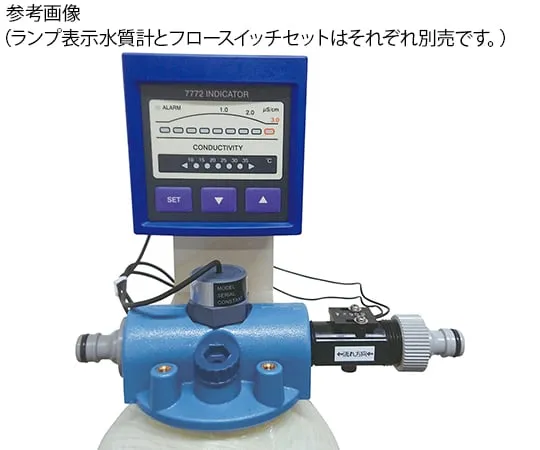

• Specifications: Lamp Display water quality Meter (electrical conductivity meter)
• water quality measurement range: 0 < measured < 3.0 μS/cm
• Water temperature display range: 5 to 40 ° C
• temperature compensation: digital temperature compensation
• External Output: No Voltage a Contact x 1 piece
• Output Function: Alarm (Link with external input), Buzzer, Relay Contact (1a) Output x 1 piece, Contact capacity (resistance load time) 125 VAC 0.3 A or Less or DC24V 1A or Less
• Display: water quality (9-step 3-color Display/Green/Orange/Red), Temperature (7-step 2-color Display/Green/Red), Error (measurement range over, temperature element error, open between electrodes or lower limit of measured value)
• Size: 96 x 96 x 86 mm (Mounting hole Dimensions: 92, recomm***ed plate thickness: 1.6 to 2.3 mm)
• Input power supply: AC Adapter, 5 VDC, ± 5% 1A or Less
• Power Consumption: 2VA or less
• environment ***d : Ambient Temperature/0 to 50 ° C , Ambient Humidity/5 to 80% (No condensation)
• Accessory: Dedicated Sensor (ECS -7772) x 1 piece, AC Adapter x 1 piece, Mounting metal bracket x 1 piece, Mounting Screw x 2 pieces, Mounting Screw x 2 pieces
