• Description

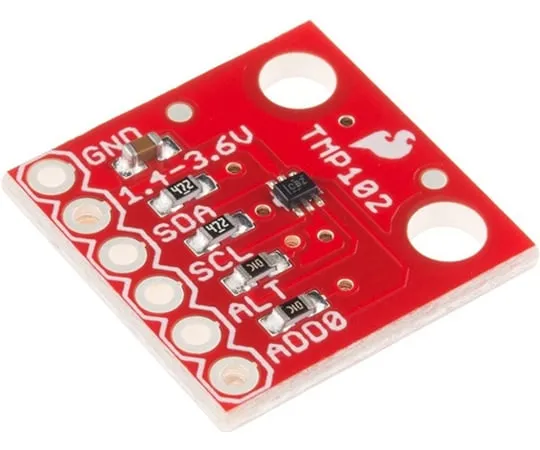

• The TMP102 is an easy-to-*** digital temperature sensor from Texas Instruments. The TMP102 breakout allows you to easily incorporate the digital temperature sensor into your project. While some temperature sensors *** an analog voltage to represent the temperature, the TMP102 ***s the I2C bus of the Arduino to communicate the temperature. Needless to say, this is a very handy sensor that doesn't require much setup.
• The TMP102 is capable of reading temperatures to a resolution of 0.0625°C, and is accurate up to 0.5°C. The breakout has built-in 4.7kΩ pull-up resistors for I2C communications and runs from 1.4V to 3.6V. I2C communication ***s an open drain signaling, so there is no need to *** level shifting.
• Get Started with the TMP102 Breakout Guide
• Features
• Uses the I2C interface
• 12-bit, 0.0625°C resolution
• Typical temperature accuracy of ±0.5°C
• 3.3V sensor
• Supports up to four TMP102 sensors on the I2C bus at a time
