67-0426-43 Analog Servo - FeeTech S0005 (Sub-Micro Size) ROB-18285
suctioncupmask

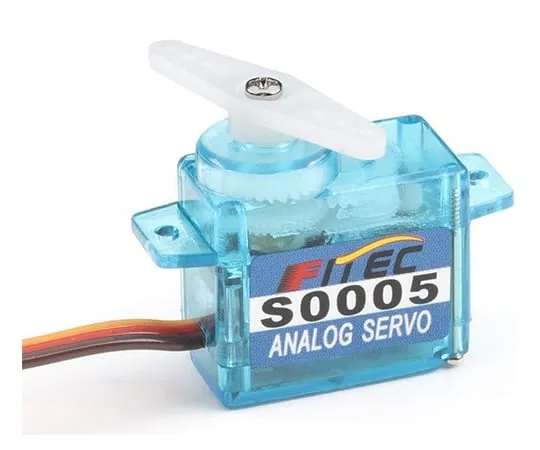

67-0426-43 Analog Servo - FeeTech S0005 (Sub-Micro Size) ROB-18285

model: 67-0426-43
brand: SparkFun
category: suctioncupmask

Product Description

Product Model: 67-0426-43Product Brand: SparkFun Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 67-0426-43
Product Brand: SparkFun

Features

  • Description
  • Servos can be found everywhere from heavy machinery, to power steering in vehicles, to robotics and a wide variety of electronics. So there are typically a plethora of options to choose frob but when you need a 120° rotation analog servo motor, this is the one! This servo is able to take in 6V and deliver 13.90 oz-in. of maximum torque at 0.12 sec/60°
  • A standard 3-pin power and control cable is attached. Check out the 'Includes' tab for all the hardware that is included.
  • Features
  • Voltage:4.8-6.0 Volts
  • Torque:11.10/13.90 oz-in.(4.8/6.0V)
  • Speed:0.14/0.12 sec/60°(4.8/6.0V)
  • Rotation:120°
  • Motor Type:Brushed
  • Gear Type:Plastic
  • Pulse Width:900-2100 μs
  • Wire Length:170mm
  • Weight:5.0g

Spec
