Electronic/Electrical Parts and Controll Equipments
64-1340-46 EAO Single Pole Double Throw (SPDT) Momentary Blue LED Push Button Switch, IP65, IP67, 16 (Dia.)mm, Panel Mount, 24V 82-4551.1124
Product Description
Product Model: 64-1340-46Product Brand: EAO Features CE […]
Contact Us
Product Details
Product Model: 64-1340-46
Product Brand: EAO
Features
- CE, UL. EAO Series 82 Illuminated Anti-Vandal Switches. Series 82 illuminated anti-vandal switches from EAO. The switches have an aesthetic design combined with a robust metal housing and conform to protection ratings; IK10 (physical attack) and IP67 (Dust and waterproof), making them ideal for *** in public areas and harsh conditions. Three size versions are available for mounting into cut-outs of 16, 19 and 22mm. Aluminium construction Flat, convex and raised button types available Daylight readable illumination Excellent tactile switching action
Spec
- Quantity:1piece
- Switch Operation:Momentary
- Mounting Type:Panel Mount
- Illuminated:Yes
- Contact Configuration:Single Pole Double Throw (SPDT)
- Panel Cut Out Size:16 (Dia.)mm
- Panel Cut Out Diameter:16mm
- LED Colour:Blue
- IP Rating:IP65, IP67
- Actuator Colour:Natural Aluminium
- Voltage Rating:24V
- Contact Current Rating:1 A @ 24 V dc
- Actuator Shape:Round
- Terminal Type:Soldering / QC
- Actuator Type:Flat
- CODE No.:811-4062
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

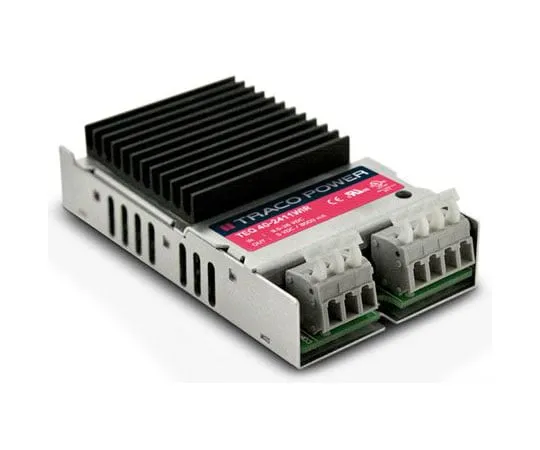

63-8428-90 TRACOPOWER TEQ 40WIR 40W Isolated DC-DC Converter Chassis Mount, Voltage in 9.5 → 36 V dc, Voltage out 15V dc TEQ 40-2413WIR
