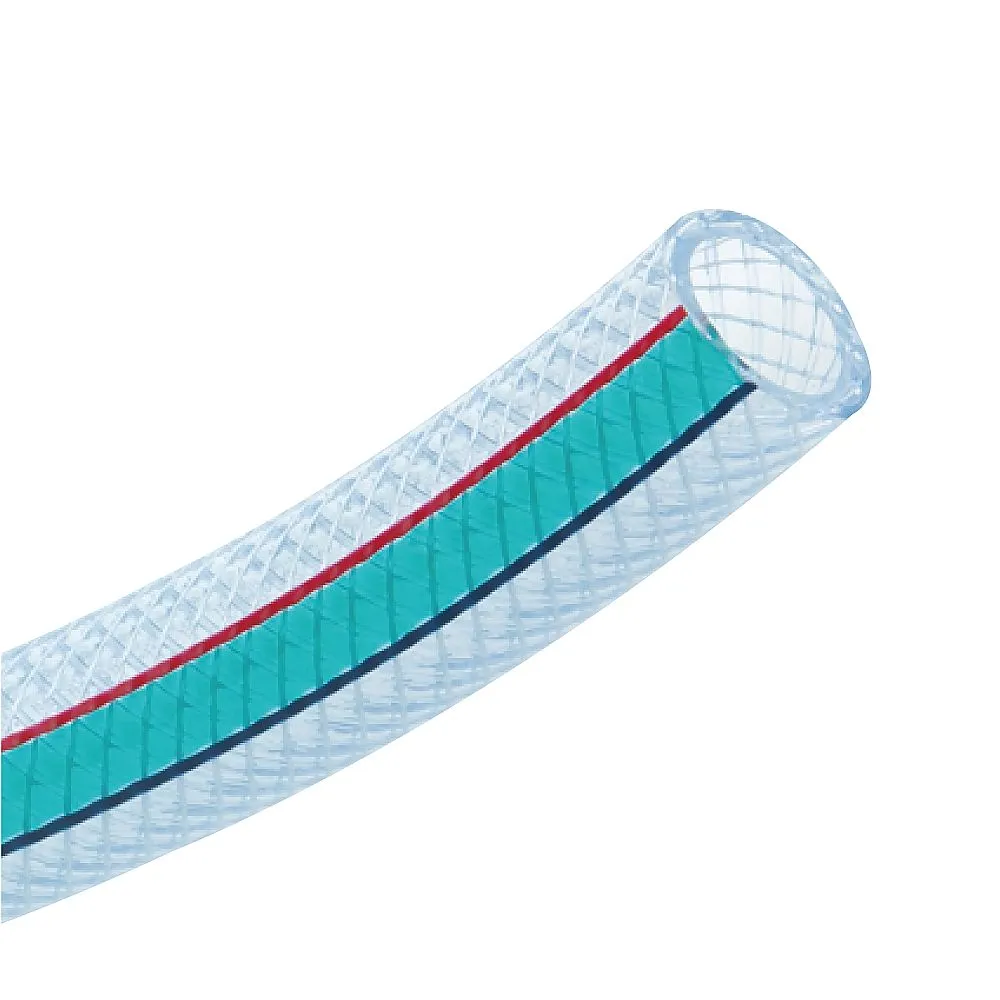

65-0849-98 Hybrib Toyoron Hose for Factory Equipment Piping and Various Mechanical Piping HTR-15-1
Product Description
Product Model: 65-0849-98Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0849-98
Product Brand: TOYOX CO., LTD.
Features
- "Main Application": For factory piping and mechanical piping.
- "Multi-purpose resin hose": Pressure resistant blade hose that can be ***d for pressure feeding of various fluids such as water, oil, chemicals, and air.
- "Durability": The inner surface of the hose is excellent in oil resistance, does not harden and has a long life.
- "Shape retention": More resistant to hose breakage and collapse than general blade hose.
- "Flexibility": Soft and easy to pipe.
- "Transparency": Highly transparent and allows checking of internal fluid.
- "Compliance with standards": RoHS2 compliant (as of October 2021).
Spec
- Inner diameter x Outer diameter (mm): 15 x 22
- Pressure (Mpa): 0 to 1.0 (23 °C), 0 to 0.8 (60 °C)
- Operating temperature range: -5 to 60 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Special PET Plastic, Polyester Yarn
- Minimum b***ing radius: 70 mm
