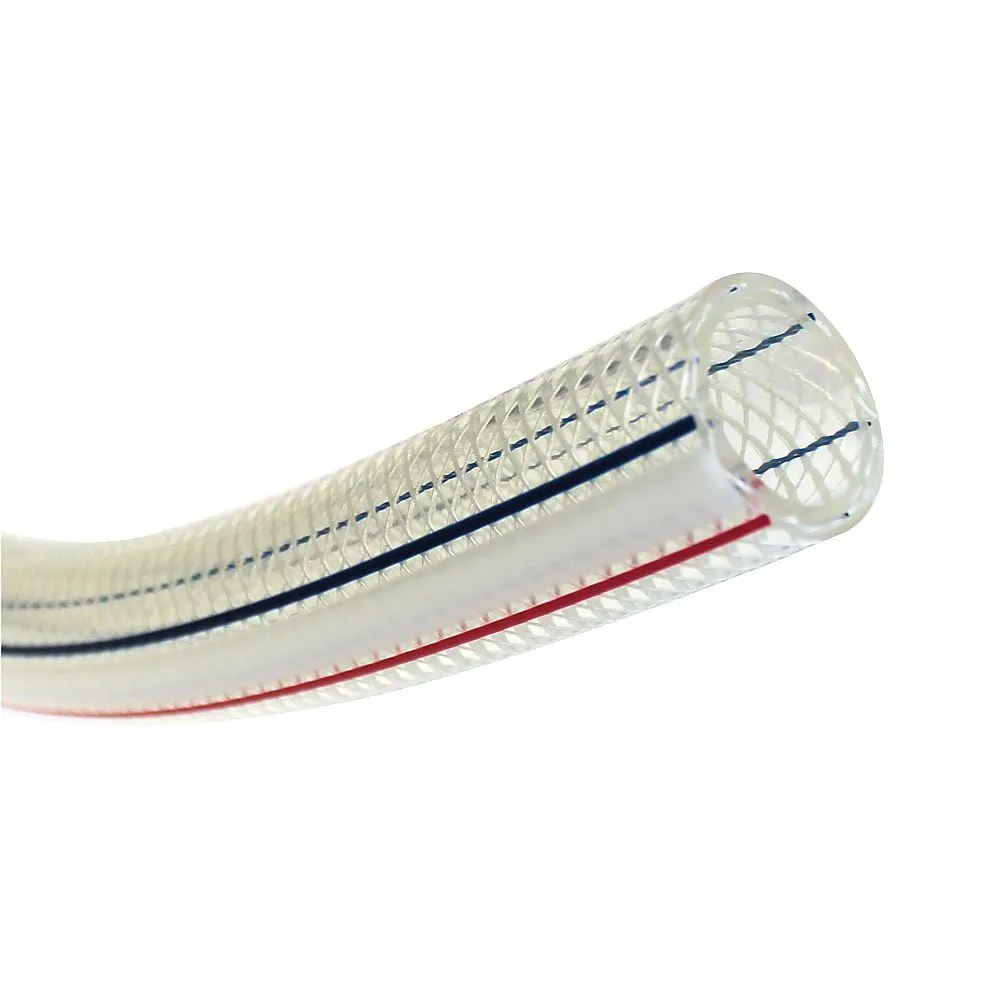

65-0849-46 High-part Toyoron Hose for Factory Equipment Piping and Various Mechanical Piping HPT-32-1
Product Description
Product Model: 65-0849-46Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0849-46
Product Brand: TOYOX CO., LTD.
Features
- "Main Applications": For pressure feeding of plant and equipment piping and mechanical piping
- "High oil resistance": Pressure resistant blade hose that is strong against oil and excellent in oil resistance (2 times higher than our company Toyolon hose)
- "Heat resistance": Heat resistance up to 70°C
- "Multi-purpose resin hose": Pressure resistant blade hose that can be ***d for pressure feeding of various fluids such as water, oil, chemicals, and air
- "Durability": The inner and outer surfaces of the hose are excellent in oil resistance, making it hard and long life
- "Flexibility": Soft and easy to pipe
- "Transparency": Highly transparent, allowing you to check the fluid inside
- "Compliance with standards": RoHS2 compliant (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 32 x 41
- Pressure (Mpa): 0 to 0.7 (23 °C), 0 to 0.4 (70 °C)
- Operating temperature range: -5 °C to 70 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Polyester Yarn
- Minimum b***ing radius: 200 mm
