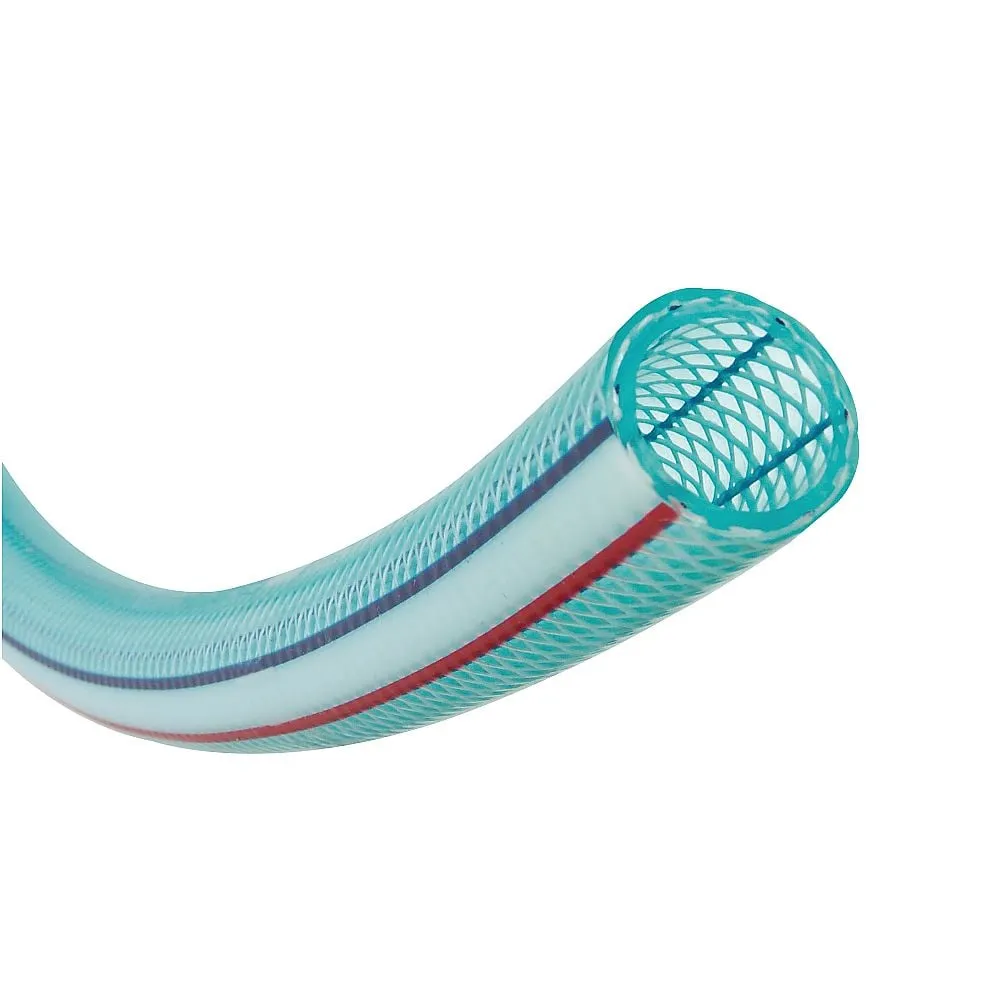

65-0847-51 Factory Equipment Piping/Various Mechanical Piping Super Toyoron Hose ST-32-1
Product Description
Product Model: 65-0847-51Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0847-51
Product Brand: TOYOX CO., LTD.
Features
- "Main Application": For Pushing Plant Piping and Mechanical Piping
- "Multi-Purpose Resin Hose": Pressure Resistant Blade Hose that can be ***d for Pushing Various Fluids such as Water, Oil, Chemicals and Air
- "Durability": The inner and outer surfaces of the hose are excellent in oil resistance, making it difficult to harden and long life
- "Flexibility": Soft and easy to pipe
- "Transparency": Highly transparent, allowing internal fluid to be identified
- "Compliance with specifications": RoHS2 compliant as of October 2021
Spec
- Inner diameter x Outer diameter (mm): 32 x 41
- Pressure (Mpa): 0 to 0.4
- Operating temperature range: -5 to 60 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Polyester Yarn
- Minimum b***ing radius: 192 mm
