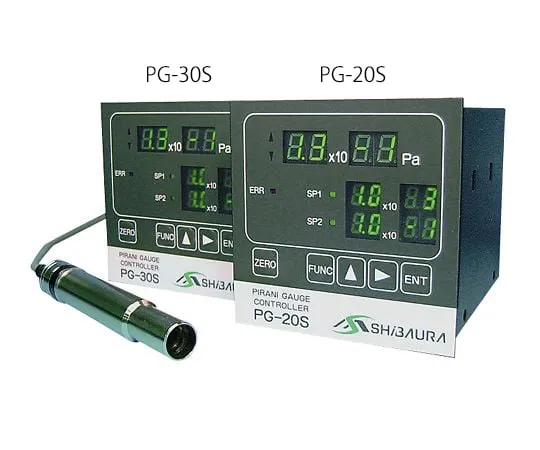

3-660-01 Pyrani Vacuum Gauge AC100V With Measuring Tube PG-20S
Product Description
Product Model: 3-660-01Product Brand: SHIBAURA ELETEC F […]
Contact Us
Product Details
Product Model: 3-660-01
Product Brand: SHIBAURA ELETEC
Features
- It has a wide measurement range of 1.0×10^-2~1.0×10^4 Pa.
- A constant temperature type that is resistant to failure.
- It is easy to see on a large digital screen.
- Small body can save space.
Spec
- Specification: AC100V with measuring tube
- Size: 96 x 120 x 96mm
- Measurement range: 1.0 x 10 ^ -2 to: 1.0 x 10 ^ 4 Pa
- Output: Control output/Relay contact output (Two points can be set.), capacity AC100V 1A, Analog output/0 to 5V F.S. (1 V per digit), Output impedance 1kΩ
- Temperature and humidity ***d: 5 to 40 ℃, not more than 90% (noncondensing)
- Power supply : AC100V 50/60Hz
- Accessories: Sensor cable 3m x 1 piece, Meter (outer diameter φ15 mm)
