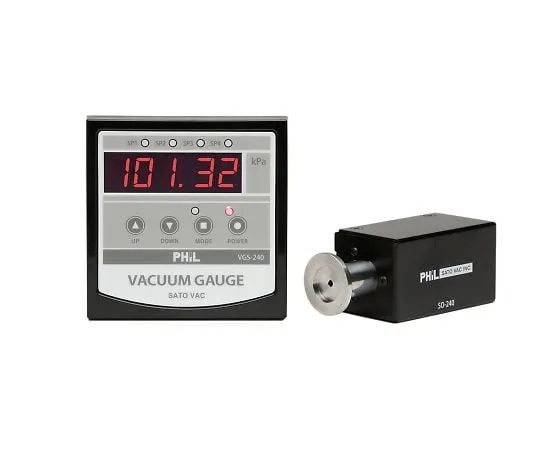

3-615-01 Absolute Vacuum Gauge VGS-240
Product Description
Product Model: 3-615-01Product Brand: SATO VAC INC. Fea […]
Contact Us
Product Details
Product Model: 3-615-01
Product Brand: SATO VAC INC.
Features
- The measurement range can be selected from Hi range and Lo range.
- Excellent corrosion resistance beca*** the pressure-sensitive element is SUS316 L.
- The sensors are compatible and only the sensor can be replaced.
Spec
- Weight: indicator/250g, sensor/230g
- Measurement range: Hi/0.1 to 20.0 kPa (Range: 0.0 to 24.0 kPa) , Lo/0.1 to 133.3 kPa (Range: 0.0 to 145.0 kPa)
- Accuracy:. + -. 0.25% FS + 1 dig
- Size: Display/96 x 34 x 96 mm, Sensor/40 x 100 x 40mm
- Sensor system: Piezoresistive semiconductor sensor
- Pressure port: NW 16 (SUS304)
- Analog output: 4 to 20 mA (Full scale value can be set)
- Communication output: RS -232 C
- Power supply: DC 12 to 24 V
- Accessories: Display, sensor (NW 16), 2m sensor cable (LAN cable), panel mounted metal bracket, stand for tabletop, D-sub connector x 2 pieces (9 Pin・15 Pin)
*This product might require extra fees.
