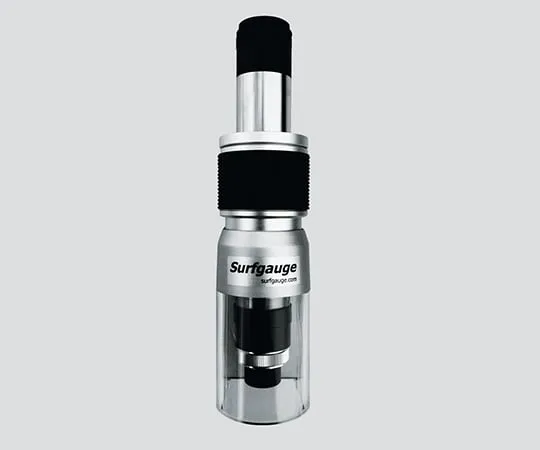

3-6083-11 contact angle meter ST-2
Product Description
Product Model: 3-6083-11Product Brand: Surfgauge Featur […]
Contact Us
Product Details
Product Model: 3-6083-11
Product Brand: Surfgauge
Features
- Wettability test can be done by contact angle value.
- Suitable for measuring samples that can not be cut.
- Beca*** it is portable, it can take quick measurements in the field.
Spec
- Measuring range (degrees): 2 ~ 130
- Number of pieces: 1
- Measuring resolution: 2 ~ 10 degrees/0.5 degrees, 10 ~ 20 degrees/1 degrees, 20 ~ 30 degrees/2 degrees, 40 ~ 80 degrees/4 degrees, 80 ~ 110 degrees/5 degrees, 110 ~ 130 degrees/10 degrees
- Contact area: About 40 x 60 mm
- Size: 45 x 60 x 170 mm
- Weight: approximately 320 g
- Source for light source: 1 AA battery (included for testing)
