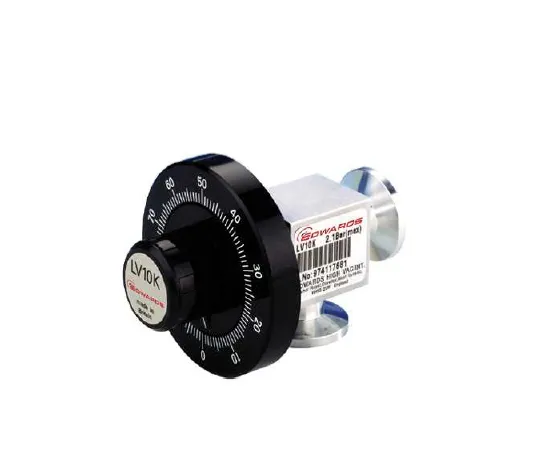

1-3061-02 Needle Valve NW10 LV10K
Product Description
Product Model: 1-3061-02Product Brand: Edwards Ltd Feat […]
Contact Us
Product Details
Product Model: 1-3061-02
Product Brand: Edwards Ltd
Features
- The LV 10 K needle valve is suitable for introducing gas up to 10 -5 mbar/8 x 10 -6 Torr by controlling the pressure in the vacuum system by fine-tuning the gas bleed and leakage into the vacuum chamber.
- It is enable to mount on both pipelines and panels.
Spec
- Model number: LV10K
- Type: Needle valve
- Leak amount: 10MPaL/s
- Maximum flow rate: 0.1L (when differential pressure is 10^5Pa)
- Pressure resistance: 21 x 10^4Pa - 1^-4Pa
- Maximum flow rate: 0.1L (when differential pressure is 10^5Pa)
- Pressure resistance: 21 x 10^4Pa - 1^-4Pa
- Size: 62 x 88.5 x 57mm
- Weight: 138g
- Connection port: NW10
