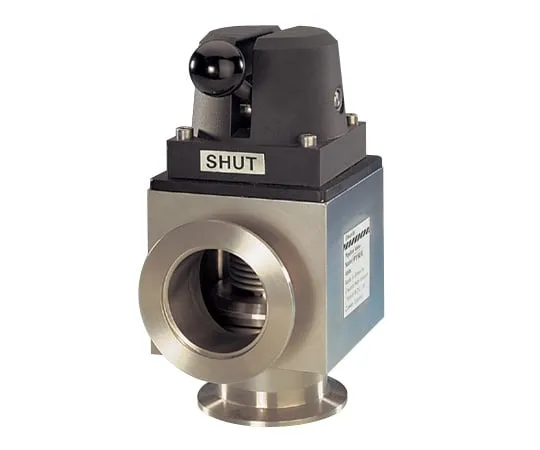

1-3060-01 Bellows Valve (Manual Type) NW10 PV10K
Product Description
Product Model: 1-3060-01Product Brand: Edwards Ltd Feat […]
Contact Us
Product Details
Product Model: 1-3060-01
Product Brand: Edwards Ltd
Features
- PVMK is a high-speed in-line or L-shaped lever valve.
- The lever is connected to a self-lubricating plastic cam spin to activate the valve stem and valve plate via the PTFE bearing.
- The ‘O’ ring groove on the valve plate prevents gas burst.
- This valve operates in a pressure range from 10 -9 mbar/8 x 10-10 Torr to 2100 mbar/1575 Torr (30 psi).
Spec
- Model number: PV10K
- Diameter (mm): φ10
- Connection port: NW10
- Size (mm): 38 x 68 x 105
- Manual type
- Material: Aluminum Silicone alloy
- Leak amount: 10^-9mbarL/s
- Used pressure: 21 x 10^4 - 10^-7Pa (2100 - 10^-9mbar)
- Baking temperature: 70℃
