1-3059-01 Diaphragm Valve (Manual Type) NW10 SP10K
Product Description
Product Model: 1-3059-01Product Brand: Edwards Ltd Feat […]
Contact Us
Product Details
Product Model: 1-3059-01
Product Brand: Edwards Ltd
Features

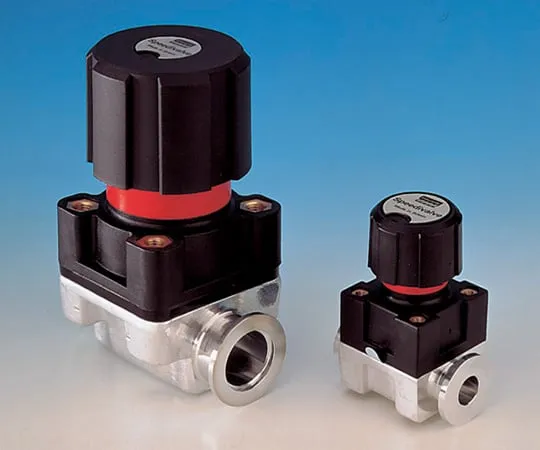

- The Edwards SP speedy valve is a diaphragm type in-line shut-off valve.
- The screw mechanism is separated from the system by a diaphragm, making the valve extremely strong and resistant to contamination.
- Valves are terminated with NW flanges and can be either pipelined or panel mounted. (The SP40K can only be pipelined.).
Spec
- Model number: SP10K (Nitryl)
- Diameter (mm): φ10
- Connection port: NW10
- Size (mm): 60 x 42 x 86
- Manual type
- Material: Aluminum Silicone alloy
- Leak amount: 10^-6mbarL/s (Valve), 10^-7mbarL/s (Coupling)
- Used pressure: 900000 - 1 x 10^-3Pa
- Baking temperature: -60℃
- *Model number ( ) shows materials of diaphragm.
