64-0650-13 TRACOPOWER TMR 1 1W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 9 V dc, Voltage out ±12V dc TMR 1-0522
Product Description
Product Model: 64-0650-13Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 64-0650-13
Product Brand: TRACOPOWER
Features
- Traco 1W SIP Fully Regulated Isolated DC-DC Converter - TMR 1 Series. The Tracopower TMR 1 series is a compact 1W isolated DC-DC converter in SIP package. The TMR 1 has a wide 2:1 input voltage range and fully regulated outputs. Wide 2:1 input voltage range Fully regulated outputs Operating temperature -40°C to +85°C No minimum load required I/0 isolation 1500 VDC Short circuit protection
Spec
- Quantity:1set(10pieces)
- Output Voltage:±12V dc
- Input Voltage Range:4.5 → 9 V dc
- Input Voltage Nominal:5 V dc
- Isolation Voltage:1.5kV dc
- Power Rating:1W
- Output Current:±42mA
- Mounting Type:Through Hole
- Number of Outputs:2
- Efficiency:78%
- Package:SIP
- Load Regulation:1%
- Maximum Temperature:+85°C
- Depth:7.62mm
- CODE No.:161-9793
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

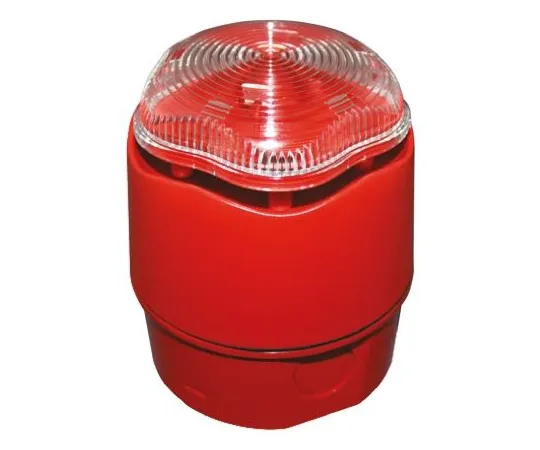

64-0532-47 Banshee Excel Lite Sounder Beacon, 110dB, Clear Xenon, 9 → 30 V dc 90011R5
