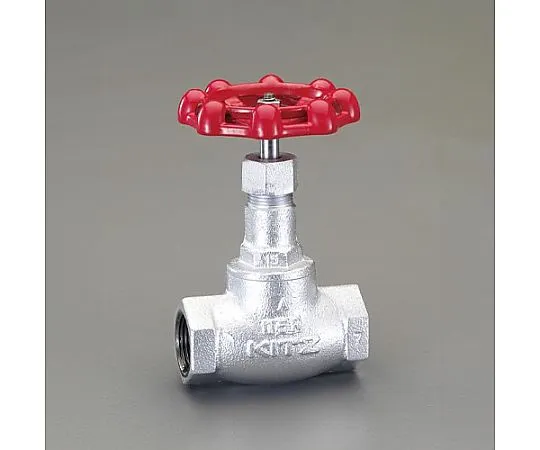

64-7857-63 Globe Valve (Ductile Cast Iron) Rc 1 1/4 " EA470CE-12
model:
64-7857-63
category:
automaticdiluter
Product Description
Product Model: 64-7857-63 Features Oil refers to lubric […]
Contact Us
Product Details
Product Model: 64-7857-63
Features
- Oil refers to lubricating oil, hydraulic oil, etc.
Spec
- Nominal Diameter: 32 (1 1/4)
- material : Body : Ductile iron ( FCD-S ) , Bonnet : Ductile iron ( FCD-S ) , Stem : SUS 420 J2 , Disc : SUS 403 , Packing : Non-Asbestos , Gasket : Expanded Graphite Sheet with Stainless Foil , Handle : FCD 450 -10
- Maximum pressure: air, gas, oil, steam, pulsating water (220 °C or less): 0.98 MPa (10 kgf/cm2), static water (120 °C or less): 1.37 MPa (14 kgf/cm2)
- Class: 10 K
- screw Size (PT): 1 1/4 "
- Connection Shape: Threaded: JIS B0203
- Size: L: 105 mm, H (fully open): 160 mm, D: 100 mm
- Weight: 1.65 kg
