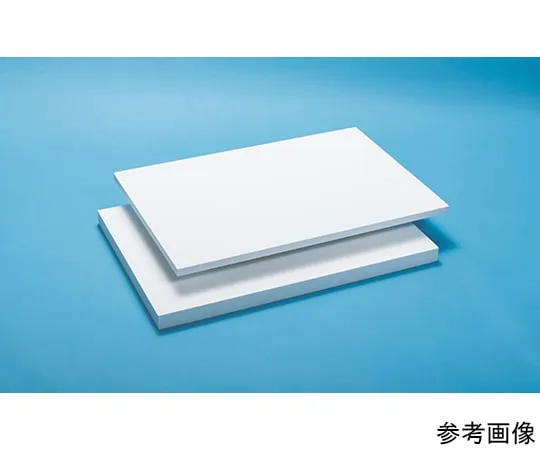

64-8309-80 TOMBO RF Board 25 x 295 x 295 mm No.5461-16LDA
Product Description
Product Model: 64-8309-80Product Brand: NICHIAS Corpora […]
Contact Us
Product Details
Product Model: 64-8309-80
Product Brand: NICHIAS Corporation
Features
- This product is formed into a plate by adding inorganic and organic binders to alumina fiber.
- This product does not contain Refractory Ceramic Fiber (RCF) and is exempt from the Regulation on Prevention of Hazards from Specific Chemical Substances.
- Excellent thermal insulation effect due to its light weight and low thermal conductivity.
- Since alumina is the main component, this product is chemically stable against acids and alkalis.
- Applications: general high temperature insulation material, lining material for insulation of furnace ceiling and furnace wall, backup material, filling material for expansion of various parts in furnace, gas sealing material
Spec
- Size (mm): 25 x 295 x 295
- Density: 200 (kg/m3)
- Maximum Heat-Resistant Temperature: 1600°C
- Regular Measure (Maximum Dimension) 600 x 900 mm
- *Machining according to your desired shape is possible. (When making a request, please prepare a drawing showing the dimensions.)
