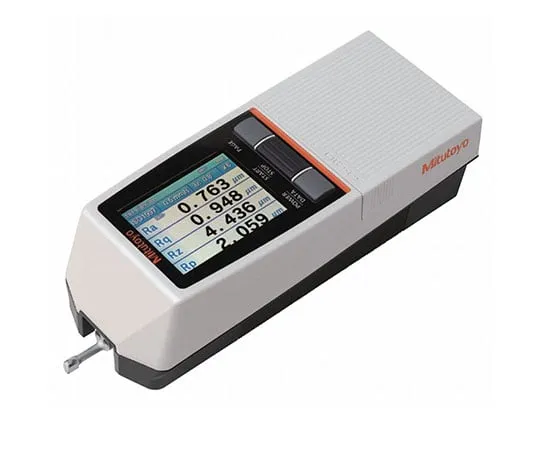

3-335-11 Surftest 0.75 mN Standard Drive Type 178-560-11 SJ-210
Product Description
Product Model: 3-335-11Product Brand: Mitutoyo Corporat […]
Contact Us
Product Details
Product Model: 3-335-11
Product Brand: Mitutoyo Corporation
Features
- A small surface roughness measuring device that is convenient to carry around like a hand tool designed for ease of *** in the field - Charging time is reduced to about 1/4 compared to conventional devices - The detector can be ***d for measurements in various positions, such as on a wall or facing upwards - Equipped with a 2.4 inch color graphic LCD with good visibility, the *** of a backlight greatly improves visibility - Color display of pass/fail results - Not only measurement results but also evaluation curves, load curves and amplitude distribution curves can be displayed - Evaluation curves can be enlarged or reduced - Horizontal and vertical posture display can be freely changed - Calculated results can be displayed in deca-character characters - Data storage function is greatly enhanced - Stylus alarm function is available - Easy setting for changing the screen display with the cross button - Can be changed to another parameter after measurement and recalculated (Some conditions are limited.)
- Note: The parameter Rmax can be calculated only when the VDA standard, ANSI standard and JIS'82 standard are selected.
- The parameter Rz1max can only be computed when the ISO'97 standard is selected.
- The parameter RzJIS can be calculated only when the JIS'01 standard is selected.
- The parameter Tp can only be operated on by the ANSI standard.
- Cutoff value s is disabled when JIS'82 standard is selected.
- For printing, prepare a special printer/178-421 (optional) separately.
- The pass-fail decision function is only allowed by the average rule in the ANSI standard. The VA standard does not allow the 16% rule to be selected.
- The auto sleep function is disabled when using the AC adapter. Also, auto sleep setting can be turned off.
Spec
- [Specifications]
- X Axis measurement range: 16 mm
- Detection Unit measurement range: 360 μm (-200 to + 160 μm)
- Detector measurement range/resolution: 360 μm/0.02 μm, 100 μm/0.006 μm, 25 μm/0.002 μm
- Measured speeds: 0.25 mm/s, 0.5 mm/s, 0.75 mm/s
- Measured speed at return: 1 mm/s
- Measurement Force/Stylus tip shape: 0.75 mN/2 μmR 60 °
- Compatible standards: JIS '82, JIS' 94, JIS '01, ISO' 97, ANSI, VDS
- Evaluation Curves: cross section Curve, Roughness Curve, DF Curve and also Chief Roughness Curve
- Parameters: Ra, Rc, Ry, Rz, Rq, Rt, Rmax, Rp, Rv, R3z, Rsk, Rku, Rc, RPc, Rsm, Rz1max, S, HSC, RzJIS, Rppi, R △ a, R △ q, Rlr, Rmr, Rmr (c), R δc, Rk, Rpk, Rvk, Mr 1, M2, A1, A2, Vo, Rpm, tp, Htp, R, Rx, AR Customizable
- analysis brushes: load curve, amplitude distribution curve
- Filter: Gauussian, 2CR 75, PC 75
- c Cutoff value: 0.08, 0.25, 0.8, 2.5 mm
- cut-off value: 2.5, 8 μm
- Base Length: 0.08, 0.25, 0.8, 2.5 mm
- Number of sections: X1, X2, X3, X4, X5, X6, X7, X8, X9, X 10, arbitrary (0.3 to 16.0 mm/0.01 mm interval)
- Liquid Crystal Dimensions (mm): 36.7 x 48.9 mm
- Display language: 16 languages (Japan, UK, Germany, France, Italy, Spain, Portugal, Korea, China (Simplified, Traditional), Czech Republic, Poland, Hungary, Turkey, Sweden, Netherlands)
- Arithmetic Result Display: Vertical/1-Step Display, 3 stages Display, Trace Display, Horizontal/1-Step Display, 4 stages Display, Trace Display (Horizontal display can be switched horizontally.)
- Printing function: measurement conditions, calculation results, pass/fail judgment results, calculation results for each section, evaluation curves, load curves, amplitude distribution curves, and environment setting items
- External Input/Output Function: USB I/F, Digimatic Output, Printer Output, RS -232 C I/F, Foot Switch I/F
- Customizer: Allows you to select the parameters you want to display and operate
- Pass/fail judgment function: maximum value rule, 16% rule, average value rule
- Saving of measurement conditions: Saving of conditions when power supply is OFF
- Storage Function: Built-in Memory/10 Measurement Conditions, Memory Card (Options)/500 Measurement Conditions, 10,000 Measurement Data, 500 Screen Data, Text File (Measurement conditions/measurement data/evaluation curve/load curve/amplitude distribution curve)
- Calibration: Automatic Calibration Method with Numeric Input/Average Calibration Method with Multiple Measurements (Up to 12 times)
- Power-Saving Features: Auto-Sleep (30 to 600 sec Optional) Feature
- power supply: Integrated Battery (Ni-MH rechargeable battery), 2 power supply on AC Adapter
- Built-in battery charge time: approx. 4 hours (It may vary dep***ing on the ambient temperature.)
- Measurable times (When the internal battery is fully charged): Approx. 1500 times (May vary dep***ing on usage conditions, environment, etc.)
- Size: 52.1 x 65.8 x 26 mm (Slide cover closed, detector not installed)
- Weight cookies : about 500 g (Arithmetic display unit, drive unit, and standard detector)
- Accessories: Connection Cable/12 BAA 303, Roughness Standard Product/178 -601, Carrying Case/12 BAR 344, Calibration Table/12 BAK 700, Display Protection Sheet, AC Adapter, Operation Manual, One-Sheet Manual, Warranty
