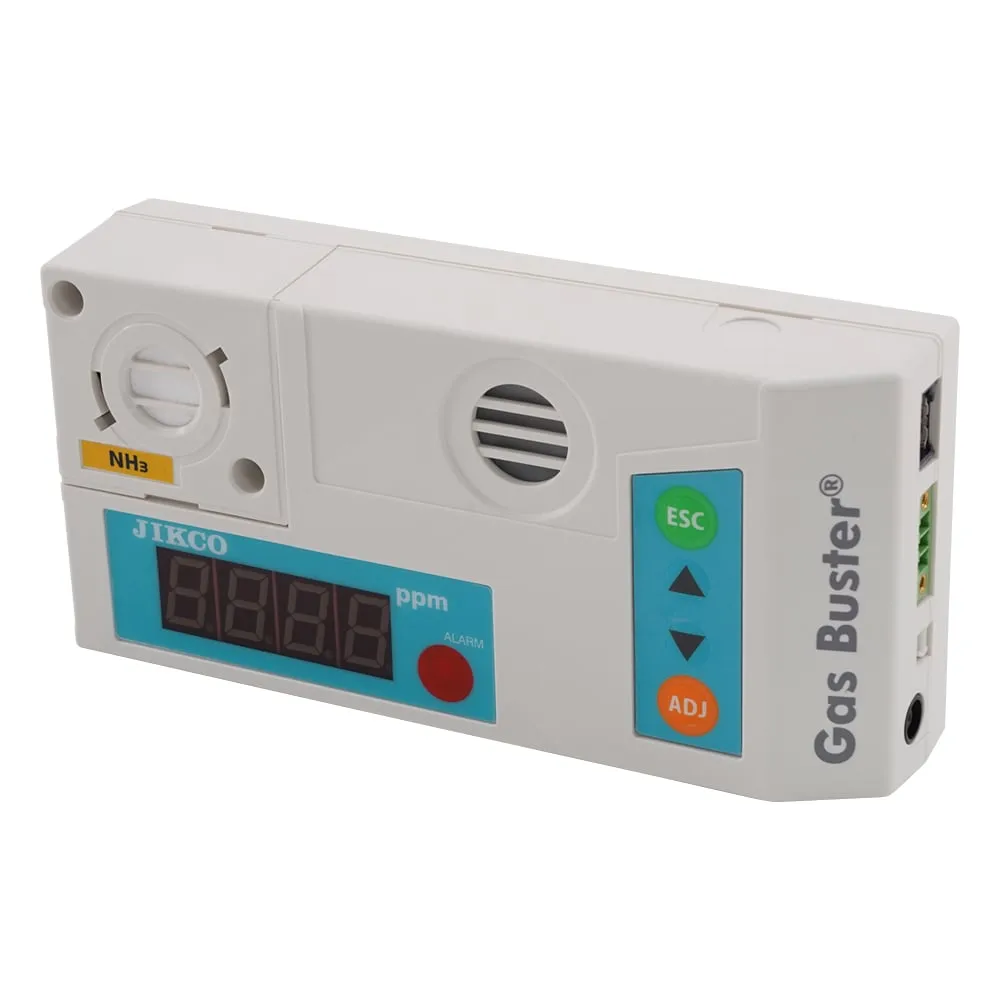

2-9970-08 Gas Detection Alarm (For Ammonia Detection) GB-AN
Product Description
Product Model: 2-9970-08Product Brand: ICHINEN JIKCO Lt […]
Contact Us
Product Details
Product Model: 2-9970-08
Product Brand: ICHINEN JIKCO Ltd.
Features
- Stationary Ammonia (NH3) Alarm • Stationary Toxic Gas Detector • Maintenance-free sensor cartridge replacement every two years • No installation work required • AC adapter driven • Optional sensor cartridge with calibration data stored in memory for easy sensor conversion.
- After purchasing the unit, you can change the cartridge to a different type of gas to accommodate various gases.
- The alarm settings can be changed as desired ((Alarm concentration x 2 points, alarm retention/automatic return)).
- External alarm output can be ***d to control rotating lights, solenoid valves, etc.
Spec
- Detection principle: Electrochemical formula
- Detection gas: Ammonia
- Alarm settings: 25, 50ppm
- Detection range: Ammonia/0 - 100ppm
- Operating temperature/humidity: 0 - 40℃/15 - 85%RH (non-condensing)
- Power supply: 100VAC 50/60Hz (including AC adapter)
- Alarm function: Electronic buzzer, high brightness red LED, external alarm output (relay no voltage, 1c contact, 30VDC 1A), 2-stage alarm specification (arbitrary change available)
- Analog output: 4 - 20mA (F.S.)
- Size: 167 x 40 x 82mm
- Weight: 250g
- Model number: GB-AN
