64-0592-25 Bourns SMAJ30CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC SMAJ30CA
Product Description
Product Model: 64-0592-25Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 64-0592-25
Product Brand: Bourns
Features
- SMBJ Series 400W TVS Diodes, Bidirectional. Bidirectional Transient Voltage Suppressor diodes with 400W peak pulse capacity in compact DO214AB (SMB) surface mount packages.
Spec
- Quantity:1bag(50pieces)
- Diode Configuration:Single
- Minimum Breakdown Voltage:33.3V
- Mounting Type:Surface Mount
- Package Type:DO-214AC (SMA)
- Maximum Reverse Stand-off Voltage:30V
- Pin Count:2
- Peak Pulse Power Dissipation:400W
- Maximum Peak Pulse Current:35A
- ESD Protection:Yes
- Number of Elements per Chip:1
- Minimum Operating Temperature:-55 °C
- Maximum Operating Temperature:+150 °C
- Maximum Reverse Leakage Current:5µA
- CODE No.:767-3740
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4603-66 Polyester Capacitor (PET) 40 V ac, 63 V dc 150 nF ±5% 1 Bag (25 Pieces) B32529C0154J000
model: 63-4603-66
brand: EPCOS
Electronic/Electrical Parts and Controll Equipments

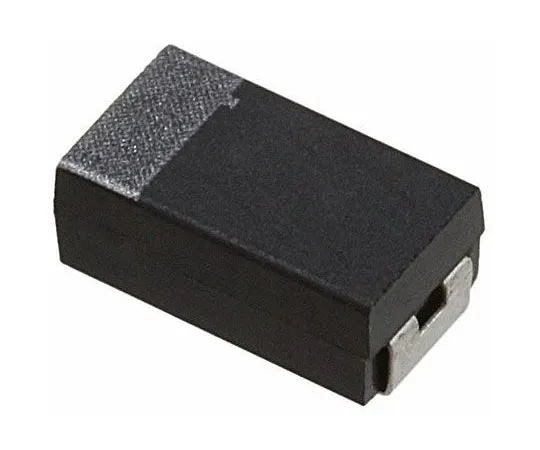

63-9679-12 AVX Tantalum Capacitor 4.7μF 10V dc Electrolytic Solid F93 Series F931A475MAA
