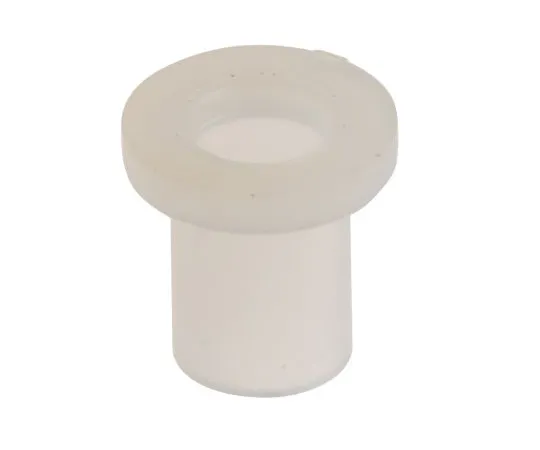

63-4580-30 RS PRO Nylon Screw Insulator, M3, 5mm 178-686
Product Description
Product Model: 63-4580-30Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4580-30
Product Brand: RS PRO
Features
- Figure Dimensions: Dimension A is Flange Diameter Dimension B is Flange Dimension A is Body Diameter Dimension A is Hole Diameter
- Nylon Screw Insulation
- These insulated spacers are mainly int***ed for insulating metal screws, but they are also suitable for bearings with light loads.
Spec
- For Screw Size:M3
- Inside Diameter:3.1mm
- Body Outside Diameter:4mm
- Body Length:5mm
- Flange Diameter:6.2mm
- Flange Thickness:1 mm
- Material:Nylon
- CODE No.:178-686
