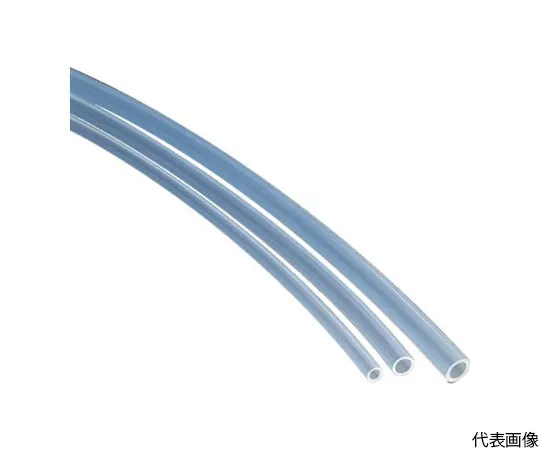

64-4806-81 Fluorine Plastic (PFA) Tube 12 x 10 50 M SFT1210-50-C
Product Description
Product Model: 64-4806-81Product Brand: NIHON PISCO CO. […]
Contact Us
Product Details
Product Model: 64-4806-81
Product Brand: NIHON PISCO CO., LTD.
Features
- Excellent chemical resistance, heat resistance and weather resistance.
- High internal smoothness, transparency, and purity.
- Do not apply loads such as tension, twisting or extreme b***ing to the tube. This may ca*** the tube to collapse, burst, or fall out.
- The breaking pressure of the tube decreases with the increase of temperature, so please understand the working pressure well and check the safety factor with sufficient margin.
- Use the tube with a minimum b*** radius.
- When attaching a tube to a one-touch joint, check whether the cut area of the tube is cut at a right angle, whether the outer diameter of the tube is scratched, and whether the tube is elliptical.
Spec
- Total length ( m ) : 50
- Minimum B***ing Radius ( mm ) : 67
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Tube Outer Diameter (φ D) (mm): φ 12
- Tube Inner Diameter (φ D) (mm): φ 10
- Minimum Mounting Radius (mm): 100
- Please contact us if you *** it for chemicals.
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Operating Temperature Range: -65 to 260 °C (Without Freezing)
- Maximum Working Pressure: 0.8 MPa at 20 °C 65 %RH hours
- Working Vacuum Pressure: -100 kPa
- Material/Finishing: PFA
- Country of origin: Japan
- Securities Code: 818 -1988
