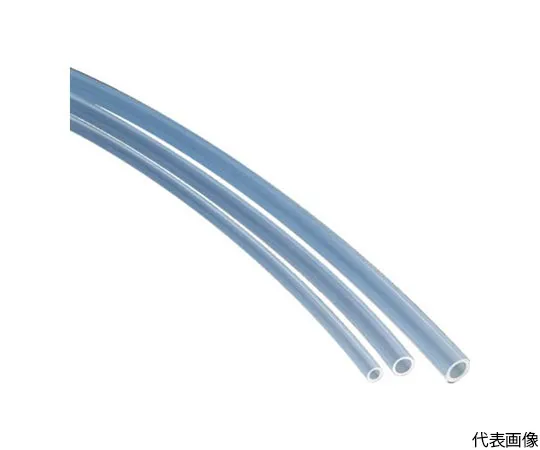

64-4806-75 Fluorine Plastic (PFA) Tube 8 x 6 50 M SFT0860-50-C
automaticdiluter

64-4806-75 Fluorine Plastic (PFA) Tube 8 x 6 50 M SFT0860-50-C

model: 64-4806-75
brand: NIHON PISCO CO., LTD.
category: automaticdiluter

Product Description

Product Model: 64-4806-75Product Brand: NIHON PISCO CO. […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-4806-75
Product Brand: NIHON PISCO CO., LTD.

Features

  • Excellent chemical resistance, heat resistance and weather resistance.
  • High internal smoothness, transparency, and purity.
  • Do not apply loads such as tension, twisting or extreme b***ing to the tube. This may ca*** the tube to collapse, burst, or fall out.
  • The breaking pressure of the tube decreases with the increase of temperature, so please understand the working pressure well and check the safety factor with sufficient margin.
  • Use the tube with a minimum b*** radius.
  • When attaching a tube to a one-touch joint, check whether the cut area of the tube is cut at a right angle, whether the outer diameter of the tube is scratched, and whether the tube is elliptical.

Spec

  • Total length ( m ) : 50
  • Minimum B***ing Radius ( mm ) : 27
  • Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
  • Tube Outer Diameter (φD) (mm): φ8
  • Tube Inner Diameter (φD) (mm): φ6
  • Minimum Mounting Radius (mm): 40
  • Please contact us if you *** it for chemicals.
  • Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
  • Operating Temperature Range: -65 to 260 °C (Without Freezing)
  • Maximum Working Pressure: 1.0 MPa at 20 °C 65 %RH hours
  • Working Vacuum Pressure: -100 kPa
  • Material/Finishing: PFA
  • Country of origin: Japan
  • Securities Code: 818 -1982
