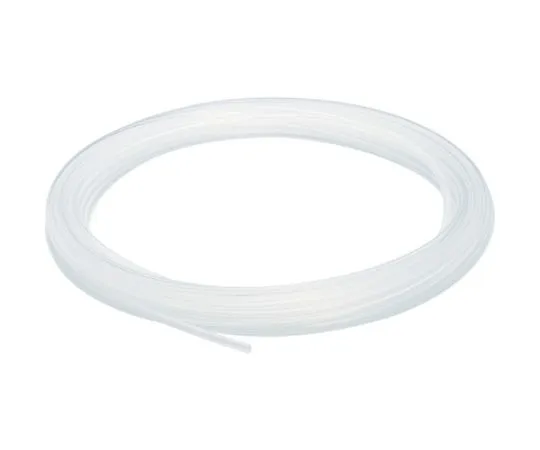

64-4806-67 Fluorine Plastic (PFA) Tube Clear 4 x 2 mm 20 M SFT0420-20-C
Product Description
Product Model: 64-4806-67Product Brand: NIHON PISCO CO. […]
Contact Us
Product Details
Product Model: 64-4806-67
Product Brand: NIHON PISCO CO., LTD.
Features
- Excellent chemical resistance, heat resistance and weather resistance.
- High internal smoothness, transparency, and purity.
- The maximum operating pressure is 20°C at 65%RH. In the case of other temperatures, please check the fracture pressure curve shown in our company catalog or on our website to see the safety factor with sufficient margin.
Spec
- colors: clearing
- Outer Diameter (mm): 4
- Inner Diameter (mm): 2
- Total length ( m ) : 20
- Minimum B***ing Radius (mm): 7
- Operating Temperature Range (°C): -65 to 260 (No Freeze)
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Minimum Mounting Radius (mm): 10
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Maximum Working Pressure: 2.4 MPa at 20 °C 65 %RH hours
- Working Vacuum Pressure: -100 kPa
- Operating Temperature Range: -65 to 260 °C (Without Freezing)
- Material/Finishing: PFA
- Country of origin: Japan
- Securities Code: 809 -5123
