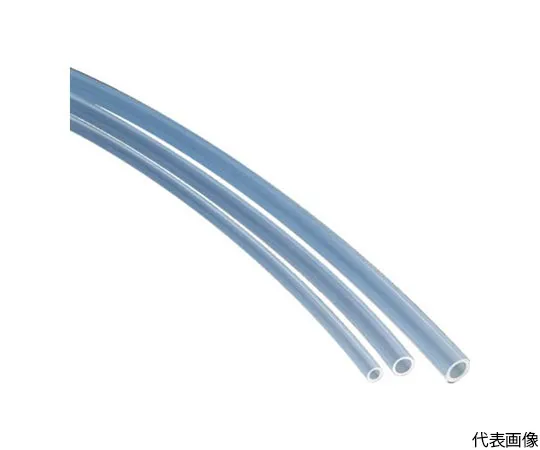

64-4806-66 Fluorine Plastic (PFA) Tube 4 x 2 100 M SFT0420-100-C
Product Description
Product Model: 64-4806-66Product Brand: NIHON PISCO CO. […]
Contact Us
Product Details
Product Model: 64-4806-66
Product Brand: NIHON PISCO CO., LTD.
Features
- Excellent chemical resistance, heat resistance and weather resistance.
- High internal smoothness, transparency, and purity.
- Do not apply loads such as tension, twisting or extreme b***ing to the tube. This may ca*** the tube to collapse, burst, or fall out.
- The breaking pressure of the tube decreases with the increase of temperature, so please understand the working pressure well and check the safety factor with sufficient margin.
- Use the tube with a minimum b*** radius.
- When attaching a tube to a one-touch joint, check whether the cut area of the tube is cut at a right angle, whether the outer diameter of the tube is scratched, and whether the tube is elliptical.
Spec
- Total length ( m ) : 100
- Minimum B***ing Radius (mm): 7
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Tube Outer Diameter (φD) (mm): φ4
- Tube Inner Diameter (φD) (mm): φ2
- Minimum Mounting Radius (mm): 10
- Please contact us if you *** it for chemicals.
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Operating Temperature Range: -65 to 260 °C (Without Freezing)
- Maximum Working Pressure: 2.4 MPa at 20 °C 65 %RH hours
- Working Vacuum Pressure: -100 kPa
- Material/Finishing: PFA
- Country of origin: Japan
- Securities Code: 818 -1975
