64-0541-75 Schneider Electric 3 PoleReversing Reversing Contactor, 6 A, 48 V ac Coil, TeSys K, 3NO, 3 kW LC2K0610E7
model:
64-0541-75
brand:
Schneider Electric
Product Description
Product Model: 64-0541-75Product Brand: Schneider Elect […]
Contact Us
Product Details
Product Model: 64-0541-75
Product Brand: Schneider Electric
Features
- 3 Pole Reversing Contactors with Screw Clamp Termination. Contactors have a switching voltage of 440Vac and a coil consumption (ac coils 50/60Hz rated) of 4.5VA (Hold in) and 30VA (inrush). These are complete units, that is two 'K' series contactors coupled together Incorporates mechanical interlock to ensure only one set of 3 poles are closed at any one time
Spec
- Quantity:1piece
- Coil Voltage:48 V ac
- Number of Poles:3
- Contact Current Rating:6 A
- Power Rating:3 kW
- Range:TeSys K
- Series:LC2K
- Function:Reversing
- Normal State Configuration:3NO
- Contact Voltage Rating:690 V ac
- Number Of Auxiliary Contacts:1
- Terminal Type:Screw
- Width:90mm
- CODE No.:609-7448
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6973-80 Miniature Caged Cam Follower CFS 5, 5mm ID, 10mm OD CFS 5
model: 63-6973-80
brand: IKO Nippon Thompson
Electronic/Electrical Parts and Controll Equipments
63-7585-63 Phoenix Contact POWER COMBICON PC Non-F***d Terminal Block, 2 Way/Pole, Screw Down Terminals, 18 → 6 AWG Panel 1967456
model: 63-7585-63
brand: Phoenix Contact
Electronic/Electrical Parts and Controll Equipments

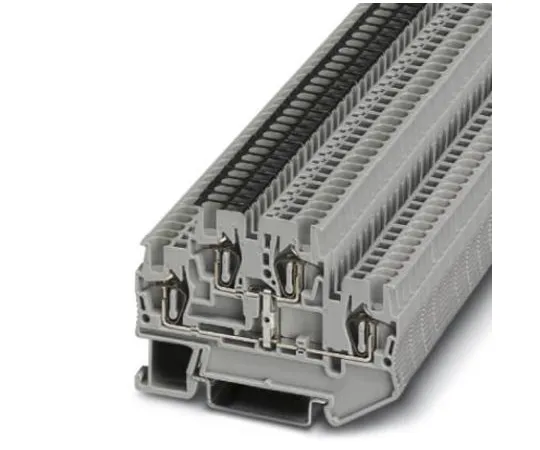

64-0636-85 Phoenix Contact, STTB 1.5-PV Series , 500 V Spring Cage, Spring Cage Termination 3031526
