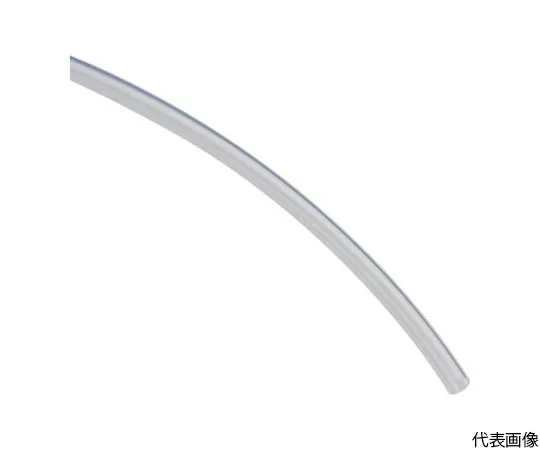

64-4806-51 Fluorine Plastic (FEP) Tube Clear 12 x 10 100 M SET1210-100-C
Product Description
Product Model: 64-4806-51Product Brand: NIHON PISCO CO. […]
Contact Us
Product Details
Product Model: 64-4806-51
Product Brand: NIHON PISCO CO., LTD.
Features
- It has excellent chemical resistance and is ideal for chemical, food, medical and semiconductor fields.
- Do not apply loads such as tension, twisting or extreme b***ing to the tube. This may ca*** the tube to collapse, burst, or fall out.
- The breaking pressure of the tube decreases with the increase of temperature, so please understand the working pressure well and check the safety factor with sufficient margin.
- Use the tube with a minimum b*** radius.
- When attaching a tube to a one-touch joint, check whether the cut area of the tube is cut at a right angle, whether the outer diameter of the tube is scratched, and whether the tube is elliptical.
Spec
- Total length ( m ) : 100
- Minimum B***ing Radius ( mm ) : 67
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Tube Outer Diameter (φ D) (mm): φ 12
- Tube Inner Diameter (φ D) (mm): φ 10
- Minimum Mounting Radius (mm): 150
- tube colors: clear
- Please contact us if you *** it for chemicals.
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Working Vacuum Pressure: -100 kPa
- Maximum Working Pressure: 0.7 MPa at 20 °C 65 %RH hours
- Operating Temperature Range: -65 to 200 °C (Without Freezing)
- Material/Finish: FEP
- Country of origin: Japan
- Securities Code: 818 -1960
