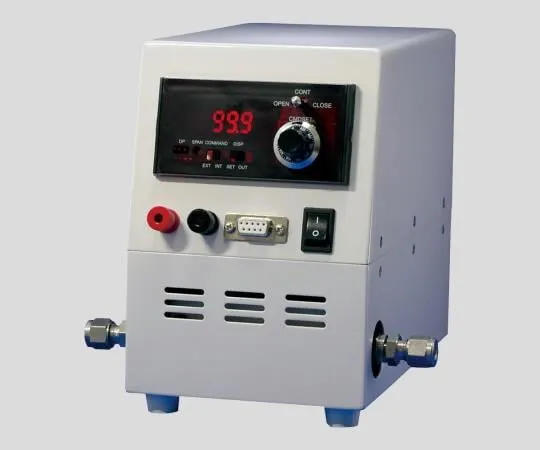

2-959-02 Gas Flow Control Unit DD-04C-02
model:
2-959-02
category:
toner
Product Description
Product Model: 2-959-02 Features Desktop-sized all-in-o […]
Contact Us
Product Details
Product Model: 2-959-02
Features
- Desktop-sized all-in-one unit. One unit can handle more than 100 types of gas.
- Reduce tedious plumbing and electrical connections by consolidating mass flow controllers, power, display, and configuration units into a single unit.
- The gas type and flow range can be easily changed from the personal computer according to the application.
Spec
- Flow rate control accuracy: +/- 1% R.S (35 - 100% F.S.), +/- 0.35% F.S. (2 - 35% F.S.)
- Reproducibility: +/- 0.2% R.S
- Operating temperature range: -5 - 50℃
- Power supply: 100VAC 50/60Hz
- Interface: With RS485 communication port (Dsub9 female connector)
- Supported OS: Windows(R) XP/VistaTM/7 (32bit)
- Size: 120 x 170 x 220mm
- Tube fitting shape: 1/4"SWL
- Flow rate control range (N2 conversion) mL/min: 11 - 30
- Supporting multi range
- *According to your request, Specially ordered manufacturing from vacuum to maximum 1MPa is available.
- *Please contact with us for supported gas type.
- Model number: DD-04C-02
