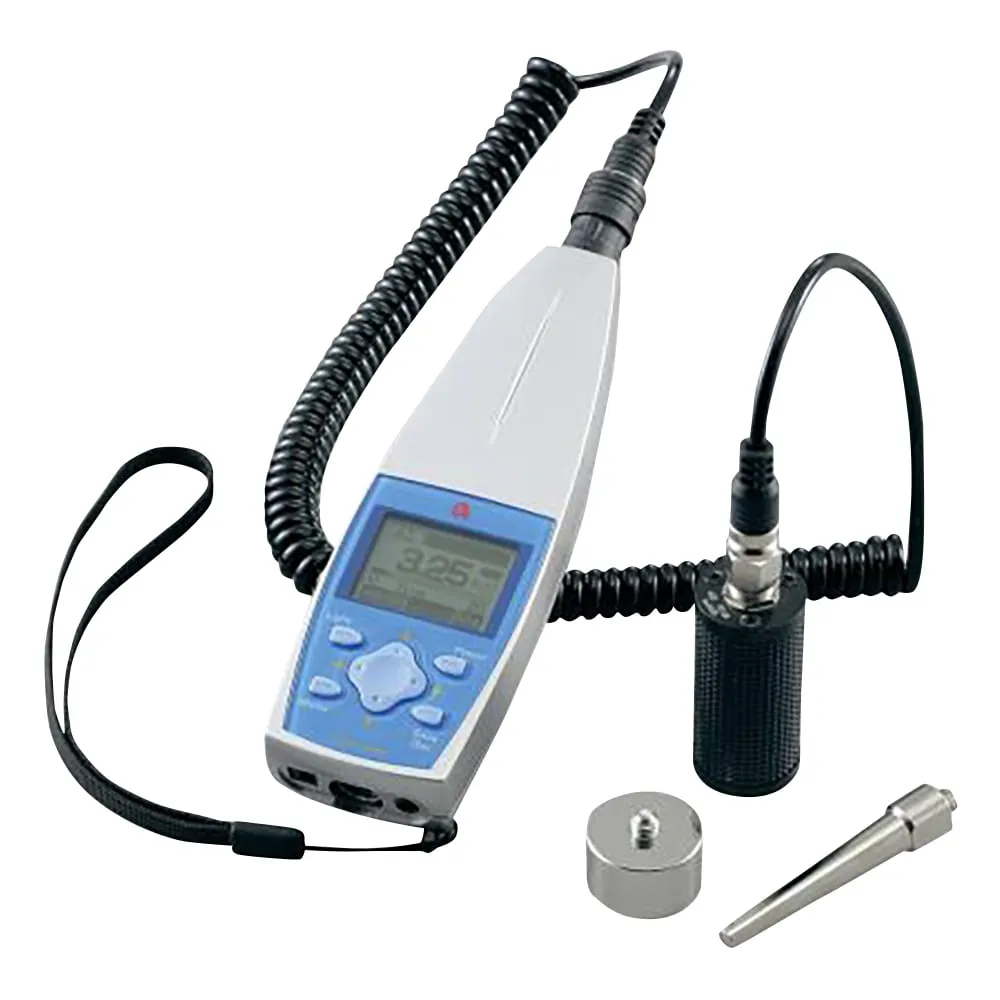

2-956-01 Small Vibration Meter 3116
model:
2-956-01
category:
toner
Product Description
Product Model: 2-956-01 Features You can connect an opt […]
Contact Us
Product Details
Product Model: 2-956-01
Features
- You can connect an optional auscultation stick or headphones to check the vibration level.
- You can start the measurement with the previously set condition.
- Compact design with weight of 130 g (including battery).
- Up to 256 files can be stored in built-in memory.
Spec
- Measurement range: Acceleration (ACC)/0.02 - 200m/s^2 RMS, Velocity (VEL)/0.02 - 200mm/s RMS, Displacement (DISP)/2 - 2000μm EQ p-p
- Frequency range: Acceleration (ACC)/3Hz - 10kHz, Velocity (VEL)/10Hz - 1kHz (JIS B0907-1989 compliance), Displacement (DISP): 10Hz - 400Hz
- Digital display: Numerical value display, 4 digits
- Size: Body/48 x 23.5 x 145mm
- Data memory: Maximum 256 pieces
- Accuracy: +/- 5%
- Power supply: AAA dry cell x 2 pieces or AC adapter , Time of continuous *** with battery is approximately 12 hours
- Body and sensor (built-in pre-amplifier type)
- Pickup temperature range (℃): -10 to +60
- Model number: 3116
