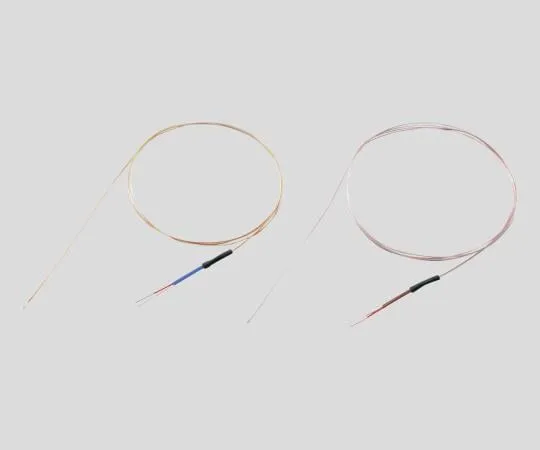

2-9251-01-57 Ultra-fine mold sensor with Chinese Calibration Certificate L-TN-SP-K
model:
2-9251-01-57
category:
toner
Product Description
Product Model: 2-9251-01-57 Features Since the temperat […]
Contact Us
Product Details
Product Model: 2-9251-01-57
Features
- Since the temperature sensitive section is molded and integrally molded with the lead wire using ultra-fine wire, temperature measurement in the low temperature range is also possible.
- Fully waterproof and moisture-proof coated thermocouple.
- By making the terminal core wire φ0.32 mm, connection to the instrument is easy.
- Excellent in heat resistance, voltage resistance, flexure resistance, corrosion resistance, chemical resistance (liquid), etc.
- Since the core wire diameter is thin, it enables quick temperature measurement, leading to improved workability and productivity.
Spec
- Coating material: Teflon ®
- Wire diameter: temperature sensitive part/phi 0.127 mm, connection part/phi 0.32 mm
- Temperature sensing part size: phi 1 mm
- Temperature range: -50 degrees C to + 200 degrees C
- Thermocouple Type: K
- Length (m): 1
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
