2-9250-01-20 Ultrathin Mold Surface Sensor with Calibration Certificate MF-SP-K
model:
2-9250-01-20
category:
toner
Product Description
Product Model: 2-9250-01-20 Features Since the temperat […]
Contact Us
Product Details

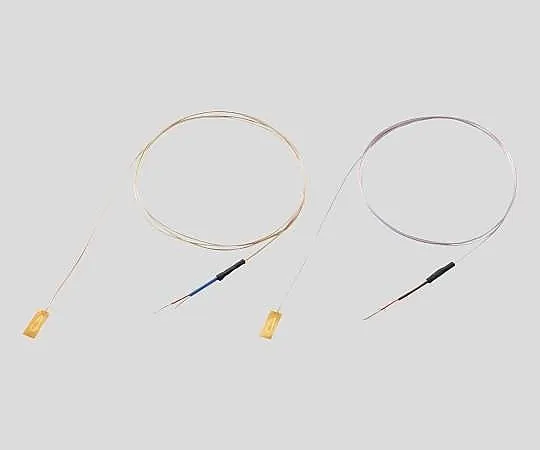

Product Model: 2-9250-01-20
Features
- Since the temperature sensitive section is molded and integrally molded with the lead wire using ultra-fine wire, temperature measurement in the low temperature range is also possible.
- Fully waterproof, moisture-proof ultra-thin type for surface temperature measurement.
- The finish thickness of the temperature-sensitive section is very thin (≒ 0.1 mm), which enables quick temperature measurement, leading to improved workability and productivity.
- By making the terminal core wire φ0.32 mm, connection to the instrument is easy.
- Excellent in heat resistance, voltage resistance, flexure resistance, corrosion resistance, chemical resistance (liquid), etc.
Spec
- Coating material: Teflon ®
- Wire diameter: temperature sensitive part/phi 0.127 mm, connection part/phi 0.32 mm
- Temperature sensitive part size: about 5 x 15 mm
- Temperature range: -50 degrees C to + 200 degrees C
- Thermocouple Type: K
- Length (m): 1
- *Custom fabrication of lead wire length changes and terminal shape changes (Y-terminal type, etc.) is possible. Please inquire.
