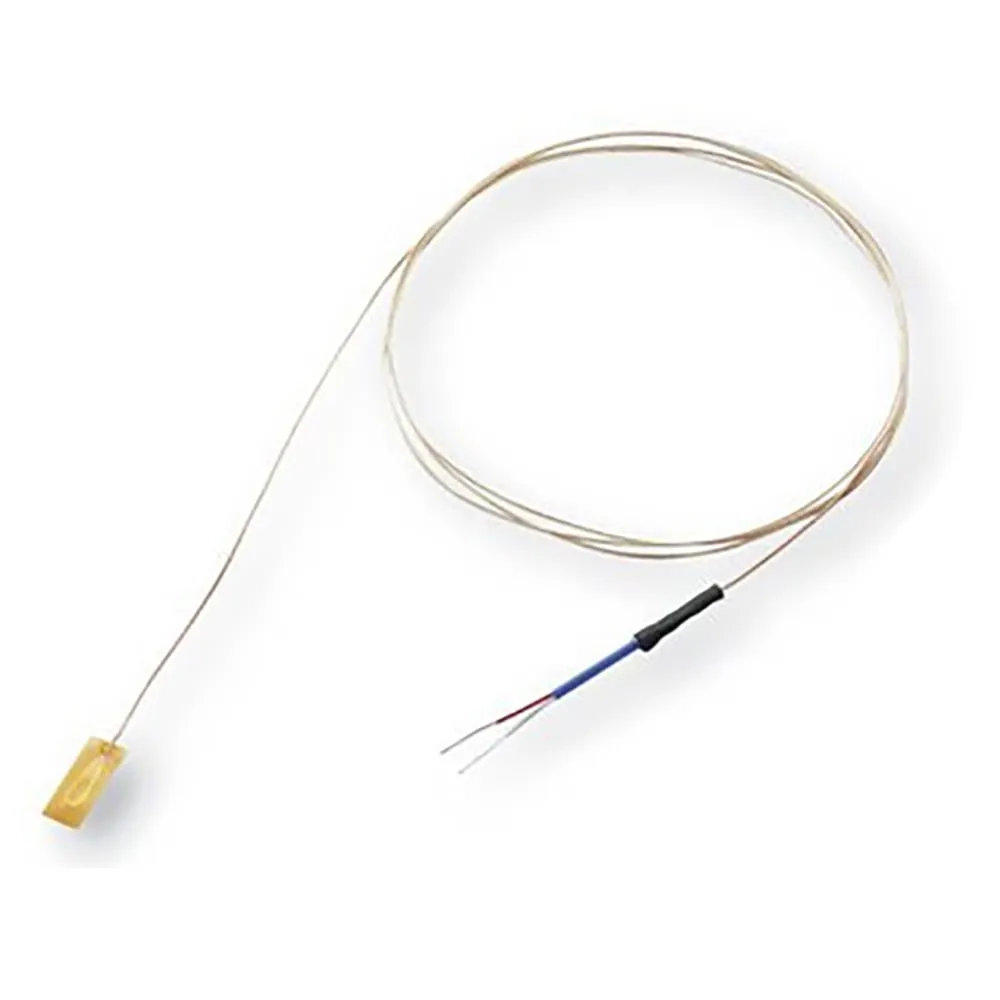

2-9250-01 Ultra-Thin Mold Surface Sensor MF-SP-K
model:
2-9250-01
category:
toner
Product Description
Product Model: 2-9250-01 Features Since the temperature […]
Contact Us
Product Details
Product Model: 2-9250-01
Features
- Since the temperature sensitive part is molded and integrally molded with the lead wire using ultra-fine wire, temperature measurement in the low temperature range is also possible.
- Fully waterproof, moisture-proof ultra-thin type for surface temperature measurement.
- The finish thickness of the temperature-sensitive section is very thin (≒ 0.1 mm), making it possible to measure temperature quickly, leading to improvements in workability and productivity.
- By making the terminal core wire φ0.32 mm, connection to the instrument is easy.
- Excellent in heat resistance, voltage resistance, flexure resistance, corrosion resistance, chemical resistance (liquid), etc.
Spec
- Coating material: Teflon (R)
- Element wire diameter: Temperature sensing element/φ0.127mm, Connection/φ0.32mm
- Thermosensitive part size: Approximately 5 x 15mm
- Temperature range: -200℃ to +200℃
- Type of thermocouple: K
- Length (m): 1
- Model number: MF-SP-K
- RoHS3 (EU)2015/863 Certificates can be issued
