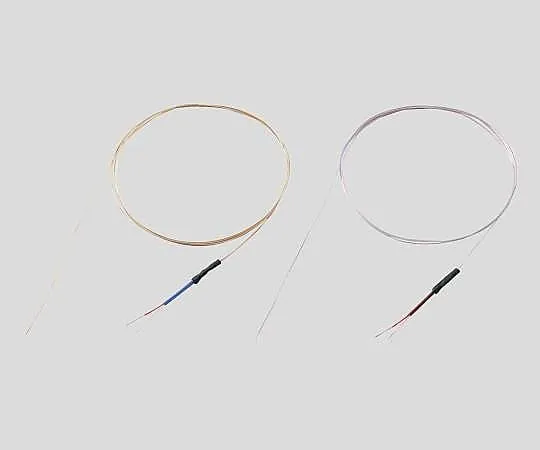

2-9249-01-57 Ultrafine Coated Thermocouple with Chinese Calibration Certificate TI-SP-K
model:
2-9249-01-57
category:
toner
Product Description
Product Model: 2-9249-01-57 Features Coated thermocoupl […]
Contact Us
Product Details
Product Model: 2-9249-01-57
Features
- Coated thermocouple with tip welding using ultra-fine wire.
- Since the core wire diameter is thin, it enables quick temperature measurement, leading to improved workability and productivity.
- By making the terminal core wire φ0.32, connection to the instrument is easy.
- Excellent in heat resistance, voltage resistance, flexability, etc.
- It is also possible to change the specifications such as element change, length change, base wire diameter change (φ0.076, φ0.254), terminal section with miniature connector, Y-terminal type, etc.
Spec
- Coating material: Teflon ®
- Wire diameter: temperature sensitive part/phi 0.127 mm, connection part/phi 0.32 mm
- Temperature range: 0 to 200 degrees C
- Thermocouple Type: K
- Length (m): 1
- *Custom fabrication of lead wire length changes and terminal shape changes (Y-terminal type, etc.) is possible. Please inquire.
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
