Features

• Description

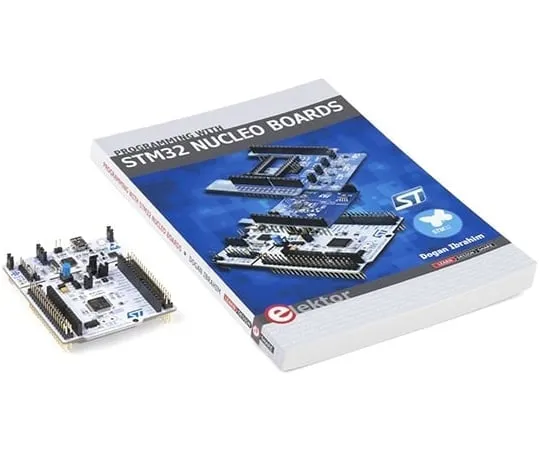

• The Elektor STM32 Nucleo Starter Kit is the perfect entry point into the world of the widely popular STM32 microcontroller line. This bundle covers many projects using most features of the STM32 Nucleo development boards with the full software listings for Mbed and System Workbench given for every project. The projects range from simple flashing LEDs to more complex projects using modules and devices such as GPIO, ADC, DAC, I2C, LCD, analog inputs and others.
• STM32 Nucleo family of processors are manufactured by STMicroelectronics. These are low-cost ARM microcontroller development boards. This book is about developing projects using the popular Nucleo development board. In the early chapters of the book, the architecture of the Nucleo family is briefly described.
• Software development tools that can be ***d with the Nucleo boards such as the Mbed, Keil MDK, TrueSTUDIO, and the System Workbench are described briefly in later Chapters.
• The book covers many projects using most features of the STM32 Nucleo development boards where the full software listings for Mbed and System Workbench are given for every project. The projects range from simple flashing LEDs to more complex projects using modules and devices such as GPIO, ADC, DAC, I2C, LCD, analog inputs and others.
• In addition, several projects are given using the Nucleo Expansion Boards, including popular expansion boards such as solid-state relay, MEMS and environmental sensors, DC motor driver, Wi-Fi, and stepper motor driver(not included). These Expansion Boards plug on top of the Nucleo development boards and simplify the task of project development considerably.
• Features
• STM32L476RG Board
• mbed-enabled
• On-board ST-LINK/V2-1 debugger/programmer with SWD connector - selection-mode switch to *** the kit as a standalone ST-LINK/V2-1
• Flexible board power supply - USB VBUS or external source(3.3V, 5V, 7 - 12V)- Power management access point
• Three LEDs - USB communication(LD1), ***r LED(LD2), power LED(LD3)
• Two push buttons:USER and RESET
• USB re-enumeration capability:three different interfaces supported on USB - Virtual Com port - Mass storage - Debug port
• Supported by wide choice of Integrated Development Environments(IDEs)including IAR, Keil, GCC-based IDEs
