Electronic/Electrical Parts and Controll Equipments
64-0453-04 Wurth WE-TPC Series Type 1038 Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±30% Wire-Wound 3.6A Idc 744066100
model:
64-0453-04
brand:
Wurth Elektronik
Product Description
Product Model: 64-0453-04Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 64-0453-04
Product Brand: Wurth Elektronik
Features
- WE-TPC Series 10mm Square Magnetically Shielded Wire Wound Chokes. WE-TPC Series is extremely flat power inductor with high current capability Magnetically shielded which results in a low leakage field Operating temperature: –40 to +125°C Applications: Portable power (e.g. PDA, digital camera, PCMCIA cards and displays); DC/DC converter; Embedded PC; Mobile data gathering, telemetric
Spec
- Quantity:1bag(800pieces)
- Inductance:10 μH
- Maximum DC Current:3.6A
- Package/Case:1038
- Length:10mm
- Depth:10mm
- Height:3.8mm
- Dimensions:10 x 10 x 3.8mm
- Shielded:Yes
- Tolerance:±30%
- Maximum DC Resistance:35mΩ
- Series:WE-TPC
- Core Material:Ferrite
- Maximum Self Resonant Frequency:20MHz
- Minimum Operating Temperature:-40°C
- CODE No.:163-3621
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

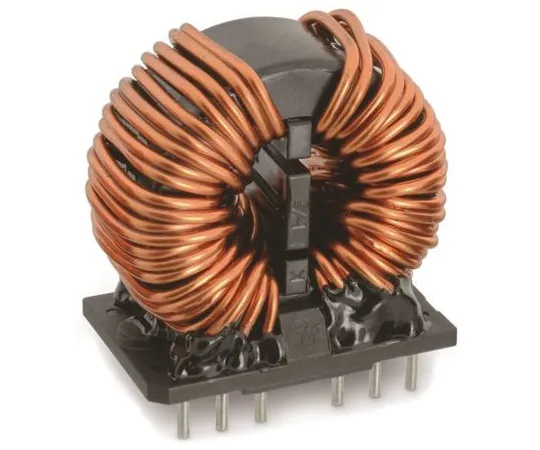

64-1380-52 Wurth 2 x 20 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 6A Idc, 2 x 45mΩ 7448060620
