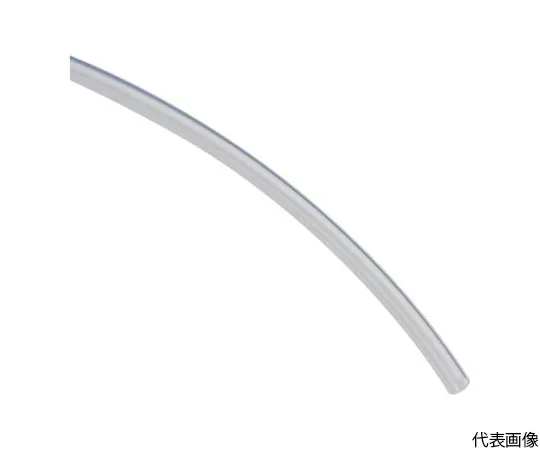

64-4806-24 Fluorine Plastic (FEP) Tube Clear 4 x 2.5 50 M SET0425-50-C
Product Description
Product Model: 64-4806-24Product Brand: NIHON PISCO CO. […]
Contact Us
Product Details
Product Model: 64-4806-24
Product Brand: NIHON PISCO CO., LTD.
Features
- It has excellent chemical resistance and is ideal for chemical, food, medical and semiconductor fields.
- Do not apply loads such as tension, twisting or extreme bending to the tube. This may cause the tube to collapse, burst, or fall out.
- The breaking pressure of the tube decreases with the increase of temperature, so please understand the working pressure well and check the safety factor with sufficient margin.
- Use the tube with a minimum bend radius.
- When attaching a tube to a one-touch joint, check whether the cut area of the tube is cut at a right angle, whether the outer diameter of the tube is scratched, and whether the tube is elliptical.
Spec
- Total length ( m ) : 50
- Minimum Bending Radius ( mm ) : 14
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Tube Outer Diameter (φD) (mm): φ4
- Tube Inner Diameter (φ D) (mm): φ 2.5
- Minimum Mounting Radius (mm): 20
- tube colors: clear
- Please contact us if you use it for chemicals.
- Working Fluid: air, water (with conditions), chemicals, etc. (with conditions)
- Working Vacuum Pressure: -100 kPa
- Maximum Working Pressure: 1.6 MPa at 20 °C 65 %RH hours
- Operating Temperature Range: -65 to 200 °C (Without Freezing)
- Material/Finish: FEP
- Country of origin: Japan
- Securities Code: 818 -1933
