64-0408-08 Mean Well 156W 1 Output Embedded Switch Mode Power Supply SMPS, 13A, 12V dc Enclosed HRPG-150-12RS
Product Description
Product Model: 64-0408-08Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 64-0408-08
Product Brand: Mean Well
Features
- UL60950-1, TUV EN60950-1. UL/cUL recognised, TUV, CB. Power derates above 40°C. MTBF to MIL-HDBK-217F. 5. HRPG-150 Series Single Output Power Supply with PFC Function. High efficiency, long life and high reliability No load power consumption ;0.5W Built-in active PFC function Built-in constant current limiting circuit Built-in remote sense function Built-in remote ON-OFF control Short circuit, over load, over voltage and over temperature protection Withstands 300Vac surge input for 5 seconds 1U low profile 38mm Power factor correction to EN61000-3-2,-3 EMC compliance to EN55022 class B
Spec
- Quantity:1piece/bag
- Output Voltage:12V dc
- Output Current:13A
- Power Rating:156W
- Number of Outputs:1
- Input Voltage:120 → 370 V dc, 85 → 264 V ac
- Mounting Type:Chassis Mount
- Package Type:Enclosed
- Length:159mm
- Width:97mm
- Depth:38mm
- Weight:630g
- Efficiency:87%
- Maximum Temperature:+70°C
- Minimum Temperature:-30°C
- CODE No.:721-1658
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments
64-0594-78 Samtec SL Series 2.54mm Pitch 30 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination SL-130-T-10
model: 64-0594-78
brand: Samtec
Electronic/Electrical Parts and Controll Equipments

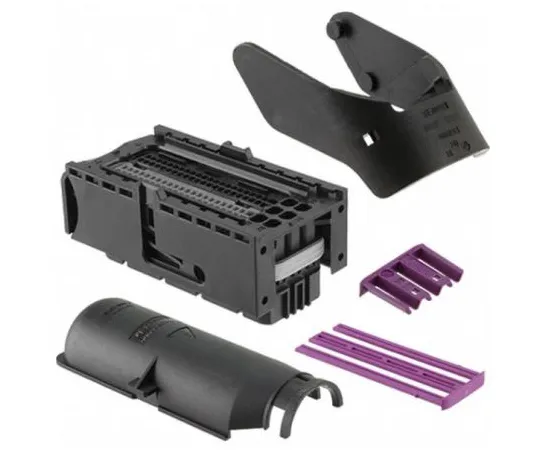

64-0377-91 TE Connectivity Micro Quadlock System Series, 94 Way Socket Housing 3-1534904-4
