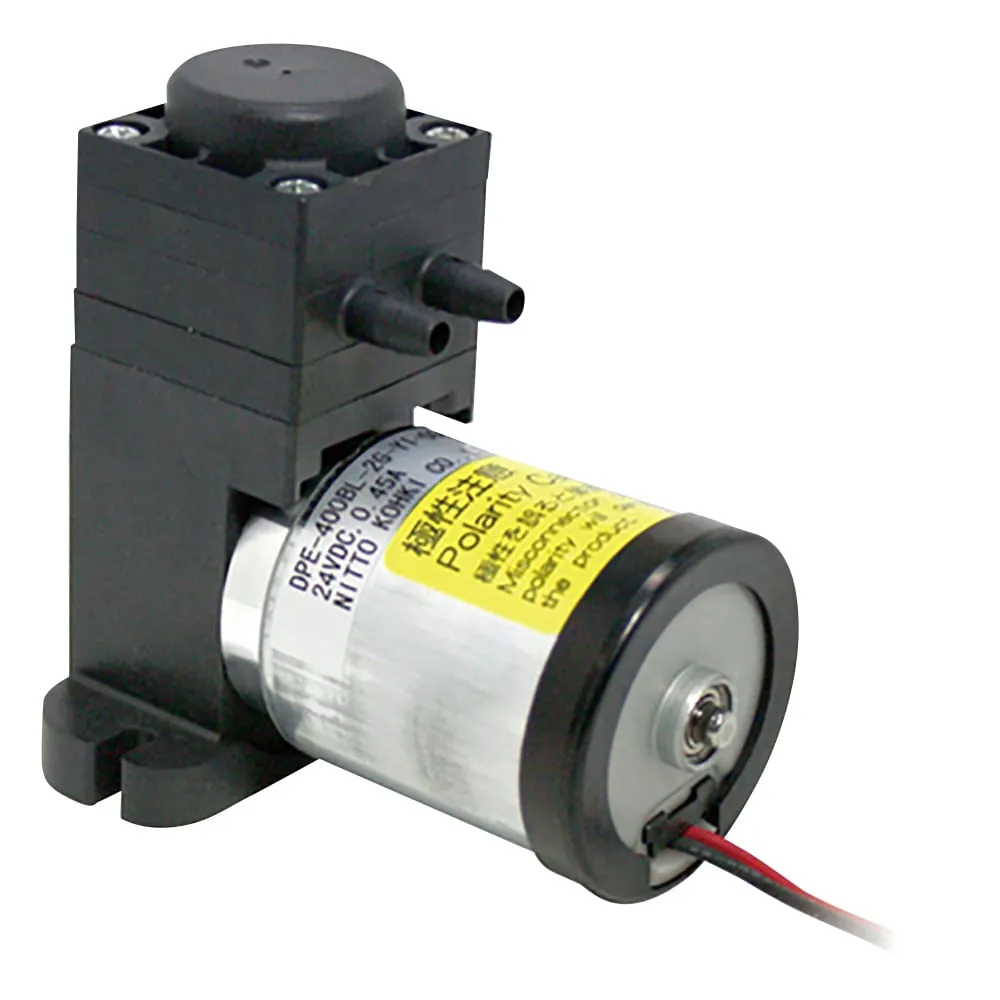

1-2395-01 Small Sized Liquid Diaphragm Pump 400mL/Min DPE-400BL-2E/DC12V DPE-400BL-2E-X1-DC12V
Product Description
Product Model: 1-2395-01Product Brand: NITTO KOHKI CO., […]
Contact Us
Product Details
Product Model: 1-2395-01
Product Brand: NITTO KOHKI CO., LTD.
Features
- It is equipped with pulsation absorbing mechanism（PAT）.
Spec
- Material: Cylinder head, head cover/PA (polyamide), Diaphragm/PTFE (poly tetrafluoroethylene), Valve, O-ring/EPDM (ethylene propylene rubber)
- Rating voltage (V): DC12
- Maximum current: 900mA
- Flow rate: 400mL/min
- Operation pressure range: 0 - 100kPa (0 - 1kgf/cm2)
- Self‐priming power: 40kPa (300mmHg)
- Inhalation, discharge port size: Outer diameter φ5.4mm
- Weight: 230g
- Size: 69.2 x 50.0 x 73.5mm
- Conform chemicals: Ammonia water, citric acid, caustic soda , ethanol, caustic potash
- Nonconform chemicals: Mineral oil, trichloroethylene, benzaldehyde, carbon tetrachloride, toluene
