63-4573-51 High voltage Resistor HB Series 68 Momega 0.4 W +/- 1% HBA68MFZRE
model:
63-4573-51
brand:
TE Connectivity
Product Description
Product Model: 63-4573-51Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4573-51
Product Brand: TE Connectivity
Features
- ; BulkPacksymbol; Products marked with this symbol can be ordered in bulk packs.
- Please order with suffix A at the *** and quote the stock number.

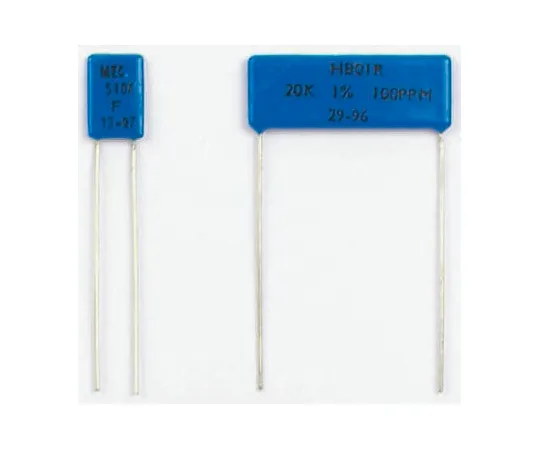

- High Voltage HB Series
- TE Connectivity's HB Series high voltage resistors provide excellent stability and reliability. These high-voltage thread resistors feature a durable epoxy coating and a compact package with a high rated output. The HB series thread resistors have high resistance values of up to 1 GΩ. Low inductance, fast switching speed, 1% clearance and flexible design.
- Features and Benefits: Radial and Axial Reed Options
- Standard Operating Voltage: 20 kV
- High Resistive Value Model Available
- Flame Retardant Epoxy Coating
- Low Noise at All Values
- Product Applications: HB High Voltage Resistors are primarily ***d for surge, high voltage, filter, partial voltage, balance, and inrush current limitation.
Spec
- Number of pieces: 1
- Resistance: 68 megohms
- Rated power: 0.4 W
- Tolerance: +/- 1%
- Technology: Thick Film
- Series: HB
- Case Style: Mold
- Temperature factor: +/- 100 ppm/deg.
- *** styles: radial
- Dimensions: 8 x 2.6 x 12.5 mm
- Length: 8mm
- Depth: 2.6 mm
- Height: 12.5 mm
- Maximum temperature coefficient: + 100 ppm/deg.
- RoHS compliance status: Compliance
- Securities Code: 158 -200
