64-0367-95 Murata 220 μH ±10% Bobbin Inductor, Max SRF:2.3MHz, Q:33, 4.1A Idc, 73mΩ Rdc 1400 1422441C
model:
64-0367-95
brand:
Murata Power Solutions
Product Description
Product Model: 64-0367-95Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 64-0367-95
Product Brand: Murata Power Solutions
Features
- Murata 1400 Series High Current Radial Inductors. Designed for *** in power line applications such as switching regulators, filters and suppression circuits Constructed from high saturation flux density material enabling *** in high current applications Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole Terminated with easy-strip pre-tinned enamelled copper leads Lead length 10mm Operating temperature: -40 → +85°C Inductance Tolerance: ±10%
Spec
- Quantity:1piece/bag
- Inductance:220 μH
- Maximum DC Current:4.1A
- Mounting Type:Radial
- Maximum DC Resistance:73mΩ
- Tolerance:±10%
- Length:27.8mm
- Depth:25.9mm
- Height:20mm
- Dimensions:27.8 x 25.9 x 20mm
- Maximum Self Resonant Frequency:2.3MHz
- Lead Pitch:23.6mm
- Series:1400
- Minimum Operating Temperature:-40°C
- CODE No.:715-6775
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

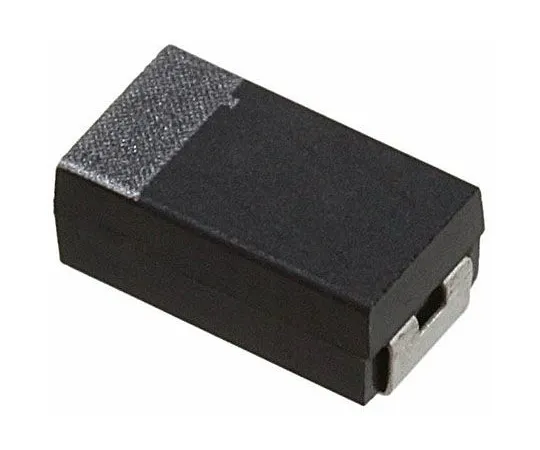

63-9674-97 AVX Tantalum Capacitor 15μF 16V dc Electrolytic Solid F93 Series F931C156MBA
