Electronic/Electrical Parts and Controll Equipments
64-0361-08 Nichicon 330μF 16V dc Aluminium Polymer Capacitor, Through Hole 10 (Dia.) x 12.5mm +105°C 10mm 5mm RNS1C331MDN1PH
Product Description
Product Model: 64-0361-08Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 64-0361-08
Product Brand: NICHICON
Features
- NS Series Solid Electrolytic Radial. Great Frequency ; Temperature characteristics due to the Functional Polymer cathode Low ESR at a high frequency range High Ripple Current capability Long life and high reliability Applications include: Switching Power Supply and DC/DC Converter; Back-Up Power Supplies of CPU (VRM etc.) and Miniature high Power Supply
Spec
- Quantity:1bag(10pieces)
- Capacitance:330µF
- Voltage:16V dc
- Mounting Type:Through Hole
- Technology:Polymer
- Dimensions:10 (Dia.) x 12.5mm
- Height:12.5mm
- Minimum Operating Temperature:-55°C
- Diameter:10mm
- Maximum Operating Temperature:+105°C
- Lifetime:2000h
- Series:NS
- Leakage Current:792 μA
- CODE No.:714-9607
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7562-44 RS Potentiometer Knob, Grub Screw Type, 28mm Knob Diameter, Black, 6.4mm Shaft 466-5005
model: 63-7562-44
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

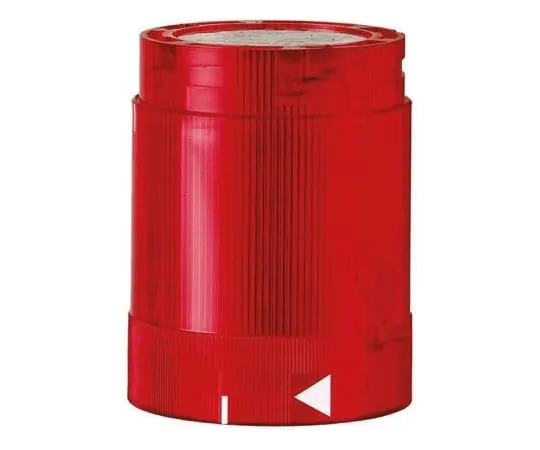

64-0283-14 KombiSIGN 50 848 Beacon Unit, Red LED, Flashing Light Effect, 24 V ac/dc 84812055
model: 64-0283-14
brand: Werma
Electronic/Electrical Parts and Controll Equipments

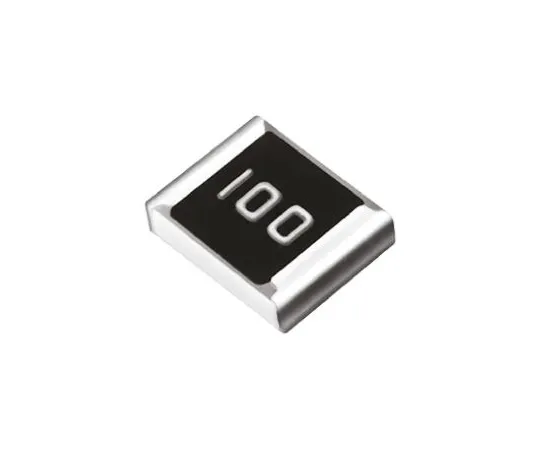

64-0471-97 100kΩ 0805 Thick Film SMD Resistor ±1% 0.125W - CR0805-FX-1003ELF CR0805-FX-1003ELF
