Features

• Description
• Note - Please read before purchasing! :The SparkFun LTE GNSS Breakout - SARA-R5 ***s the "00B" product version of the SARA-R5 module(specifically the SARA-R510M8S-00B-00). LTE NB-IoT Radio Access Technology, and the LTE FDD bands:66, 71, 85 are not supported by this version. Refer to the SARA-R5 datasheet for more information.

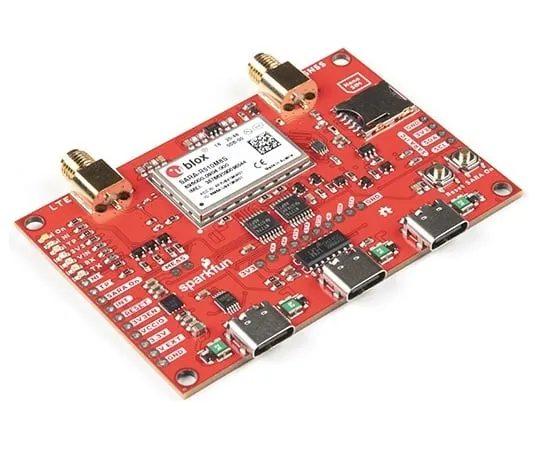

• The SparkFun SARA-R5 LTE GNSS Breakout is a robust development tool for u-blox's impressive SARA-R510M8S module. The SARA-R510M8S combines u-blox's UBX-R5 cellular chipset with their M8 GNSS receiver chipset to provide a 5G-Ready wireless IoT device complete with positioning data all on a single chip. As an asset tracker, the LTE GNSS Breakout offers Secure Cloud LTE-M communication for multi-regional *** and has an integrated u-blox M8 GNSS receiver for accurate positioning information.
• The UBX-R5 chipset supports many different forms of data communication from full TCP/IP sockets and packet switched data, through HTTP Get/Put/Post, FTP(the SARA has a built-in file system), Ping, to good old SMS text messaging! The built-in u-blox M8 GNSS receiver provides accurate and reliable positioning with a separate GNSS antenna interface for an external antenna. Both the GNSS antenna and LTE connections are made via a pair of SMA connectors.
• This breakout routes nearly all of the functional pins on the SARA-R510M8S module to ***r interfaces(USB or plated-through hole)so you can take full advantage of all of the features available on this impressive LTE/GNSS module. The SARA-R5's UART interface can be configured into one of five variants, providing connectivity over one or two UARTs. A separate USB port provides access to the SARA's trace log for diagnostic purposes. This breakout provides access to all three interfaces(UART1, UART2 and SARA Diag)via three separate USB-C connections. All eight 3.3V serial signals are available on a 0.1"-pitch breakout header. Separate 0.1"-pitch headers break out the SARA's I2C bus, power pins as well as GPIO pins for various functionalities.
• Get Started with the SARA-R5 LTE GNSS Breakout Guide
• Features
• u-blox SARA-R510M8S module providing Secure Cloud LTE-M data communication for multi-regional ***
• Please check that your service provider offers LTE-M coverage for your area before purchasing
• Integrated u-blox M8 GNSS receiver for accurate positioning information
• Nano SIM socket
• Separate, robust SMA connections for LTE and GNSS antennas
• Switchable 3.3V power for an active GNSS antenna
• USB-C connectivity
• LED indicators for:Power(VIN and 3.3V)
• SARA-R5 on
• Network indicator
• GNSS timing pulse(1PPS)
• 3.3V plated through-hole(PTH)pins for:SARA on
• Network indicator
• UART1
• GNSS timing pulse(1PPS)
• I2C bus
