Features

• Description

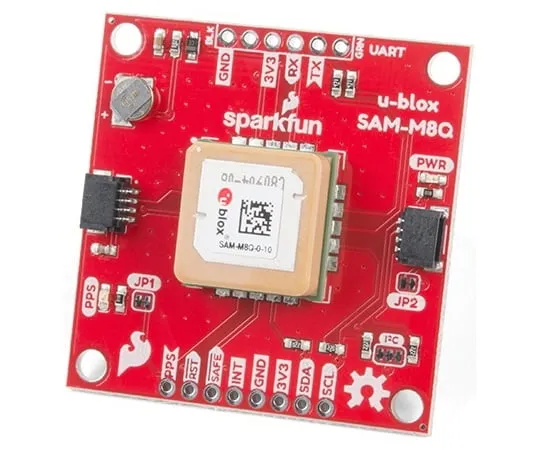

• The SparkFun SAM-M8Q GPS Breakout is a high quality GPS board with equally impressive configuration options. The SAM-M8Q is a 72-channel GNSS receiver, meaning it can receive signals from the GPS, GLONASS, and Galileo constellations. This increases precision and decreases lock time and thanks to the onboard rechargable battery, you'll have backup power enabling the GPS to get a hot lock within seconds! Additionally, this u-blox receiver supports I2C(u-blox calls this Display Data Channel)which made it perfect for the Qwiic compatibility so we don't have to *** up our precious UART ports. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1"-spaced pins in case you prefer to *** a breadboard.
• U-blox based GPS products are configurable using the popular, but dense, windows program called u-center. Plenty of different functions can be configured on the SAM-M8Q:baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc. All of this can be done within the SparkFun Arduino Library!
• The SparkFun SAM-M8Q GPS Breakout is also equipped with an on-board rechargeable battery that provides power to the RTC on the SAM-M8Q. This reduces the time-to-first fix from a cold start(~30s)to a hot start(~1s). The battery will maintain RTC and GNSS orbit data without being connected to power for plenty of time.
• The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards *** a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.
• The SAM-M8Q GPS Breakout can also be automatically detected, scanned, configured, and logged using the OpenLog Artemis datalogger system. No programming, soldering, or setup required!
• Need a custom board?
• This component can be found in SparkFun's A La Carte board builder. You can have a custom design fabricated with this component - and your choice of hundreds of other sensors, actuators and wireless devices - delivered to you in just a few weeks.
• Get Started With the SparkFun SAM-M9Q GPS Guide
• Features
• 72-Channel GNSS Receiver
• 2.5m Horizontal Accuracy
• 18Hz Max Update Rate
• Time-To-First-Fix:Cold:26s
• Hot:1s
• Max Altitude:50,000m
• Max G:?4
• Max Velocity:500m/s
• Velocity Accuracy:0.05m/s
• Heading Accuracy:0.3 degrees
• Time Pulse Accuracy:30ns
• 3.3V VCC and I/O
• Current Consumption:~29mA Tracking GPS+GLONASS
• Software Configurable
• Geofencing
• Odometer
• Spoofing Detection
• External Interrupt
• Pin Control
• Low Power Mode
• Many others!
• Supports NMEA, UBX, and RTCM protocols over UART or I2C interfaces
• Documents
• Schematic
• Eagle Files
• Hookup Guide
• Datasheet(SAM-M8Q)
• Product Summary
• Integration Manual(SAM-M8Q)
• u-blox Protocol Specification
• u-center Software
• SparkFun u-blox GNSS Arduino Library
• GitHub Hardware Repo
