Features

• Description

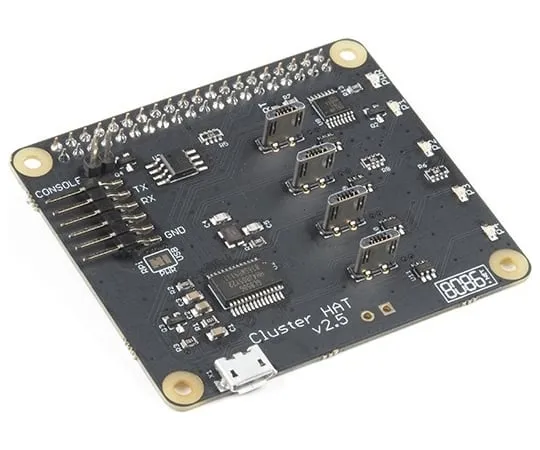

• This is a pretty straight-forward HAT for bringing simple cluster computing to the Raspberry Pi A+ and B+ lines. The Cluster HAT from 8086 allows for up to 4 Raspberry Pi Zero or Zero W boards to be connected to a Raspberry Pi A+ or B+ based board(A+/B+/2/3/4). With the Pi Zeros in USB Gadget Mode, the system functions as a small-scale computer cluster. The Zeros plug directly into the HAT via on-board USB 2.0 MicroB connectors.
• Note:This is just the HAT, USB interface cable, and mounting hardware. All Raspberry Pis must be purchased separately.
• Features
• USB Gadget Mode Functionality:Ethernet and Serial Console.
• Onboard 4 port USB 2.0 hub.
• Raspberry Pi Zeros are powered via Controller Pi GPIO(USB optional).
• Individual Raspberry Pi Zero power controlled via Controller Pi GPIO(I2C).
• Connector for Controller Serial Console(FTDI Basic).
• Controller Pi can be rebooted without interrupting power to Pi Zeros, network recovers on boot.
