64-0347-06 ABB Overload Relay NO/NC, 0.1 → 0.32 A, 320 mA, 46 W 1SAX121001R1101 EF19-0.32
Product Description
Product Model: 64-0347-06Product Brand: ABB Features El […]
Contact Us
Product Details
Product Model: 64-0347-06
Product Brand: ABB
Features
- Electronic Overload Relay. Electronic overload relays are the alternative to the thermal overload relays; they offer reliable and fast protection for motors in the event of overload or phase failure. Overload protection – trip class 10E, 20E, 30E selectable Phase loss sensitivity Adjustable current setting for overload protection Automatic or manual reset selectable Trip-free mechanism Status indication STOP and TEST function Sealable operating elements
Spec
- Quantity:1piece/bag
- FLC Motor Rating:0.1 → 0.32 A
- Contact Current Rating:320 mA
- Pole Configuration:3P
- Range:AF Range
- Contact Voltage Rating:690 V ac/dc
- Mounting Style:Direct Contactor
- Series:EF19
- Normal State Configuration:NO/NC
- Number Of Auxiliary Contacts:2
- Power Rating:46 W
- Reset Method:Automatic, Manual
- Length:85mm
- Maximum Operating Temperature:+70°C
- CODE No.:711-6569
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
64-1266-34 TE Connectivity SOLISTRAND Series Uninsulated Crimp Ring Terminal, M12 (1/2) Stud Size, 1mm² to 2.6mm² Wire Size 50981
model: 64-1266-34
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
64-0354-28 VG95234 Series Connector Seal Flange, Shell Size 24 diameter 44.5mm for *** with VG95234 Series VG95234DA24-1
model: 64-0354-28
brand: Glenair
Electronic/Electrical Parts and Controll Equipments
63-7007-72 RS PRO 35mm Stud Mount M10 50mm Diameter 159.8kg Compression Load, Male to Male Natural Rubber 126-3981
model: 63-7007-72
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

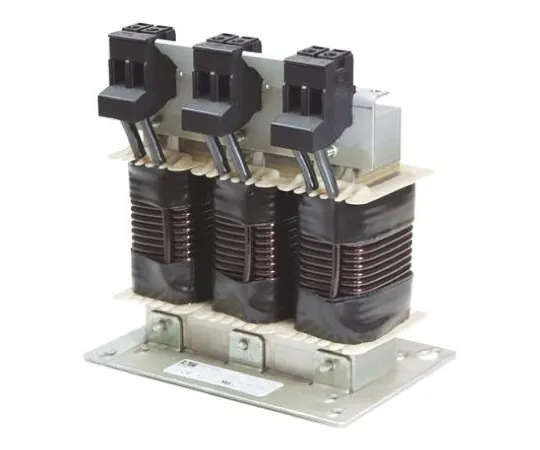

64-0468-98 Block MR3 Series 690 V ac 10A 8kHz Line Reactor MR3 400/10
