64-0304-81 Aventics 5/2 Pneumatic Control Valve Pilot/Pilot G 1/8 TC08 Series R422100970
Product Description
Product Model: 64-0304-81Product Brand: Aventics Featur […]
Contact Us
Product Details
Product Model: 64-0304-81
Product Brand: Aventics
Features
- TC08 G1/8 Valves. A large flow from a 17mm wide body of 800 l/min for all 5 / 2 functions and 700 l/min for all 5 / 3 functions. This range of valves can also be mounted together on a 'P' stip manifold. Spool valve, Non Overlapping Form 'C' or M8 electrical connection options External Pilot option allowing vacuum applications Manual override with detent Maximum partivle size 5μm Oil content of compressed air 0 → 5mg/m ;sup>3 ;/sup> 100% duty cycle Polyamide glass-fibre reinforced body
Spec
- Quantity:1piece/bag
- Manufacturer Series:TC08
- Mounting Style:Manifold
- Function:5/2
- Connection Port Thread:G 1/8
- Actuation Type:Pilot/Pilot
- Solenoid Fitted:Yes
- Body Material:Fibreglass Reinforced PA
- Maximum Flow Rate:800L/min
- Solenoid Voltage:24V dc
- Solenoid Power Consumption:2.2W
- Minimum Operating Pressure:3bar
- Minimum Operating Temperature:-10°C
- Maximum Operating Temperature:+50°C
- Maximum Operating Pressure:10 bar
- CODE No.:703-6589
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

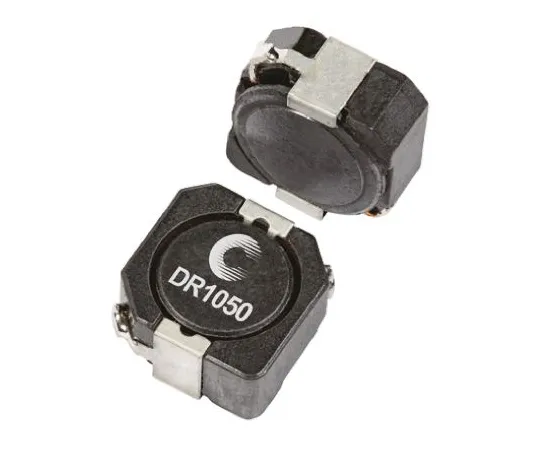

64-0605-38 Cooper Bussmann DR1050 Series Type 1050 Shielded Wire-wound SMD Inductor with a Ferrite Core, 18 μH ±30% Wire-Wound DR1050-180-R
