Electronic/Electrical Parts and Controll Equipments
64-0264-30 Bourns 0.2A Surface Mount Resettable F***, 9V MF-FSMF020X-2
Product Description
Product Model: 64-0264-30Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 64-0264-30
Product Brand: Bourns
Features
- UL. MF-FSMF Series. Applications include USB port protection, PC motherboards - Plug and Play protection, mobile phones - battery and port protection and PDAs/digital cameras. Compact design to save board space - 0603 footprint Small size results in very fast time to react to fault events Low profile
Spec
- Quantity:1bag(6000pieces)
- Trip Current:500mA
- Voltage Rating:9V
- Time to Trip:0.6s
- Hold Current:0.2A
- Maximum Current:40 A
- Length:1.85mm
- Height:0.65mm
- Width:1.05mm
- Terminal Material:Gold Plated Nickel
- Minimum Resistance:0.55Ω
- Maximum Resistance:3.5Ω
- Power Dissipation:0.5W
- Minimum Operating Temperature:-40°C
- Maximum Operating Temperature:+85°C
- Dimensions:1.85 x 1.05 x 0.65mm
- CODE No.:167-4517
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4882-76 JST XA Female Connector Housing, 2.5mm Pitch, 4 Way, 1 Row XAP-04V-1
model: 63-4882-76
brand: JST
Electronic/Electrical Parts and Controll Equipments

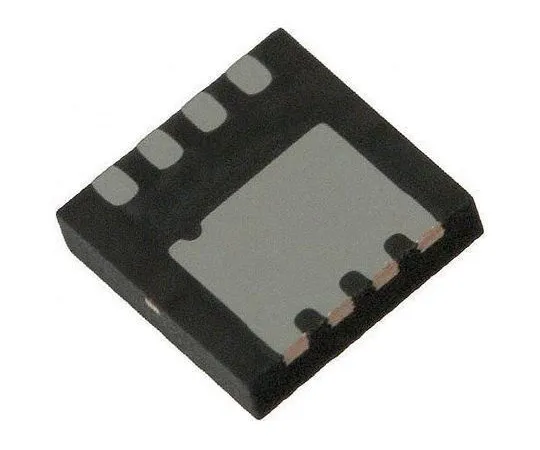

64-1317-94 FDMC86102LZ N-Channel MOSFET, 22 A, 100 V PowerTrench, 8-Pin Power 33 ON Semiconductor FDMC86102LZ
